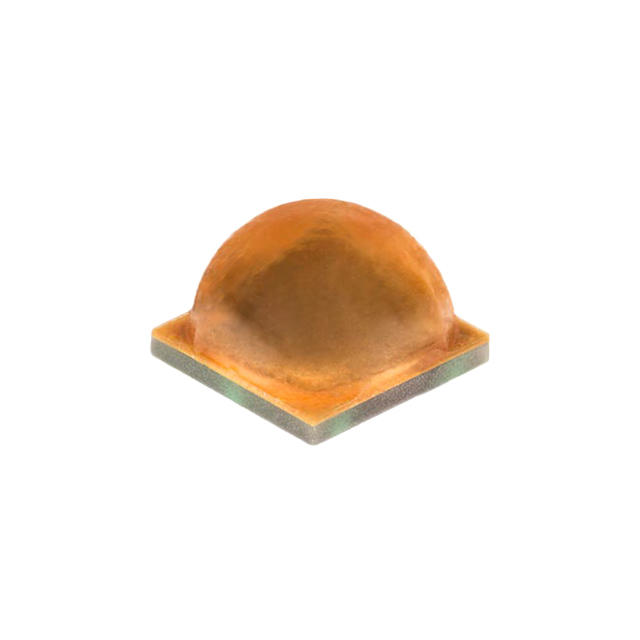

XHP50B-00-0000-0D0BJ440E

Active

Cree LED

LED, XLAMP XHP50 SERIES HIGH POWER HIGH INTENSITY

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

XHP50B-00-0000-0D0BJ440E

Active

Cree LED

LED, XLAMP XHP50 SERIES HIGH POWER HIGH INTENSITY

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	XHP50B-00-0000-0D0BJ440E

CCT (K)	4000 K
Color	Neutral, White
CRI (Color Rendering Index)	70
Current - Max	1.5 A, 3 A
Current - Test	1.4 A, 700 mA
Flux @ 85°C, Current - Test	1160 lm
Height - Seated (Max)	3.63 mm
Height - Seated (Max) [Max]	0.143 "
Lumens/Watt @ Current - Test	138 lm/W
Mounting Type	Surface Mount
Package / Case	2020
Package / Case	5050 Metric
Size / Dimension [x]	0.197 in
Size / Dimension [x]	5 mm
Size / Dimension [y]	5 mm
Size / Dimension [y]	0.197 "
Supplier Device Package	SMD
Thermal Resistance of Package [custom]	1.2 °C/W
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	6 V, 12 V

XHP50B Series

...

Part	Voltage - Forward (Vf) (Typ)	Viewing Angle	Height - Seated (Max)	Height - Seated (Max) [Max]	Current - Test	CRI (Color Rendering Index)	Supplier Device Package	Mounting Type	CCT (K)	Color	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Current - Max	Package / Case	Package / Case	Lumens/Watt @ Current - Test	Thermal Resistance of Package [custom]	Current - Max [Max]	Supplier Device Package	Flux @ 25°C, Current - Test	Flux @ 85°C, Current - Test	Flux @ 85°C, Current - Test [Max]	Flux @ 85°C, Current - Test [Min]
Cree LED XHP50B-00-0000-0D0HH235H	6 V 12 V	120 °	3.63 mm	0.143 "	1.4 A 700 mA	80	2-SMD	Surface Mount	3500 K	Warm White	0.197 in	5 mm	0.197 "	5 mm	1.5 A 3 A	2020	5050 Metric	119 lm/W	1.2 °C/W
Cree LED XHP50B-00-0000-0D0UH230H	11.2 V	120 °	3.63 mm	0.143 "		90		Surface Mount	3000 K	Warm White	0.197 in	5 mm	0.197 "	5 mm		2020	5050 Metric	119 lm/W	0.6 °C/W	1.5 A	2020	996 lm
Cree LED XHP50B-00-0000-0D0HJ20E5	6 V 12 V	120 °	3.63 mm	0.143 "	1.4 A 700 mA	80	2-SMD	Surface Mount		White	0.197 in	5 mm	0.197 "	5 mm	1.5 A 3 A	2020	5050 Metric	138 lm/W	1.2 °C/W				1080 lm
Cree LED XHP50B-00-0000-0D0BJ440E	6 V 12 V	120 °	3.63 mm	0.143 "	1.4 A 700 mA	70	SMD	Surface Mount	4000 K	Neutral White	0.197 in	5 mm	0.197 "	5 mm	1.5 A 3 A	2020	5050 Metric	138 lm/W	1.2 °C/W				1160 lm
Cree LED XHP50B-00-0000-0D0HH427G	11.2 V	120 °	3.63 mm	0.143 "		80		Surface Mount	2700 K	Warm White	0.197 in	5 mm	0.197 "	5 mm		2020	5050 Metric	128 lm/W	0.6 °C/W	1.5 A	2020	1073 lm	1005 lm	1040 lm	970 lm
Cree LED XHP50B-00-0000-0D0HJ445G	11.2 V	120 °	3.63 mm	0.143 "		80		Surface Mount	4500 K	Neutral White	0.197 in	5 mm	0.197 "	5 mm		2020	5050 Metric	148 lm/W	0.6 °C/W	1.5 A	2020	1239 lm	1160 lm
Cree LED XHP50B-00-0000-0D0UF427H	6 V 12 V	120 °	3.63 mm	0.143 "	1.4 A 700 mA	90	2-SMD	Surface Mount	2700 K	Warm White	0.197 in	5 mm	0.197 "	5 mm	1.5 A 3 A	2020	5050 Metric	96 lm/W	1.2 °C/W				755 lm	780 lm	730 lm
Cree LED XHP50B-00-0000-0D0BK20E5	11.2 V	120 °	3.63 mm	0.143 "		70		Surface Mount	6500 K	Cool White	0.197 in	5 mm	0.197 "	5 mm		2020	5050 Metric	159 lm/W	0.6 °C/W	1.5 A	2020	1328 lm	1245 lm	1290 lm	1200 lm
Cree LED XHP50B-00-0000-0D0BJ40E3	6 V 12 V	120 °	3.63 mm	0.143 "	1.4 A 700 mA	70	2-SMD	Surface Mount	5000 K	Cool White	0.197 in	5 mm	0.197 "	5 mm	1.5 A 3 A	2020	5050 Metric	148 lm/W	1.2 °C/W				1160 lm
Cree LED XHP50B-00-0000-0D0HJ40E1	11.2 V	120 °	3.63 mm	0.143 "		80		Surface Mount	6500 K	Cool White	0.197 in	5 mm	0.197 "	5 mm		2020	5050 Metric	148 lm/W	0.6 °C/W	1.5 A	2020	1239 lm	1160 lm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 4.68
		10	$ 4.45
		50	$ 4.32
		100	$ 3.98
		200	$ 3.62
	Digi-Reel®	1	$ 4.68
		10	$ 4.45
		50	$ 4.32
		100	$ 3.98
		200	$ 3.62
	Tape & Reel (TR)	500	$ 3.39
		1000	$ 3.12

Description

General part information

XHP50B Series

LED Lighting XLamp® XHP50.2 White, Neutral 4000K 5-Step MacAdam Ellipse 6V, 12V 1.4A, 700mA 120° 2020 (5050 Metric)
