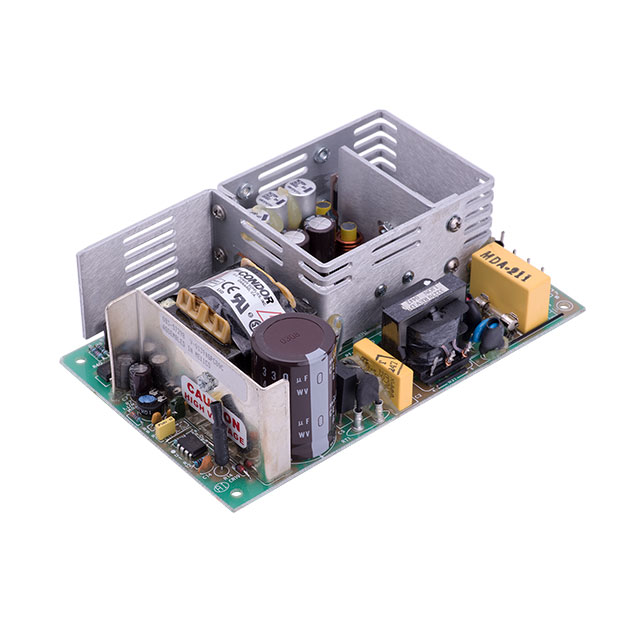

GPM80PG

Obsolete

SL POWER / Advanced Energy

AC/DC CNVRTR 5V 24V -12V 12V 80W

Search across all available documentation for this part.

Obsolete

SL POWER / Advanced Energy

AC/DC CNVRTR 5V 24V -12V 12V 80W

Technical Specifications

Parameters and characteristics for this part

Specification	GPM80PG

Applications	Medical
Approval Agency	cURus, CE, TUV
Current - Output 1	12 A
Current - Output 2	3.5 A
Current - Output 4	2 A
Efficiency	70 %
Features	Remote Sense, Universal Input, Adjustable Output
Minimum Load Required	True
Mounting Type	Chassis Mount
Number of Outputs	4
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	0 °C
Power (Watts)	80 W, 110 W
Size / Dimension [x]	7 "
Size / Dimension [x]	177.8 mm
Size / Dimension [y]	108 mm
Size / Dimension [y]	4.25 in
Size / Dimension [z]	1.86 in
Size / Dimension [z]	47.2 mm
Type	Open Frame
Voltage - Output 1	5 V
Voltage - Output 2	24 V
Voltage - Output 3	-12 V
Voltage - Output 4	12 V

Part	Applications	Number of Outputs	Voltage - Output 2	Minimum Load Required	Approval Agency	Voltage - Output 3	Efficiency	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Type	Voltage - Output 1	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output 2	Voltage - Output 4	Current - Output 4	Features	Power (Watts)	Mounting Type	Current - Output 1
SL POWER / Advanced Energy GPM80PG	Medical	4	24 V		CE cURus TUV	-12 V	70 %	7 "	108 mm	1.86 in	177.8 mm	4.25 in	47.2 mm	Open Frame	5 V	0 °C	50 °C	3.5 A	12 V	2 A	Adjustable Output Remote Sense Universal Input	80 W 110 W	Chassis Mount	12 A
SL POWER / Advanced Energy GPM80AG	Medical	4	12 V		CE cURus TUV	-12 V	70 %	7 "	108 mm	1.86 in	177.8 mm	4.25 in	47.2 mm	Open Frame	5 V	0 °C	50 °C	3 A	12 V	1 A	Adjustable Output Remote Sense Universal Input	80 W 110 W	Chassis Mount	12 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Open Frame AC DC Converters 4 Output 5V 24V -12V 12V 85 ~ 264 VAC Input
