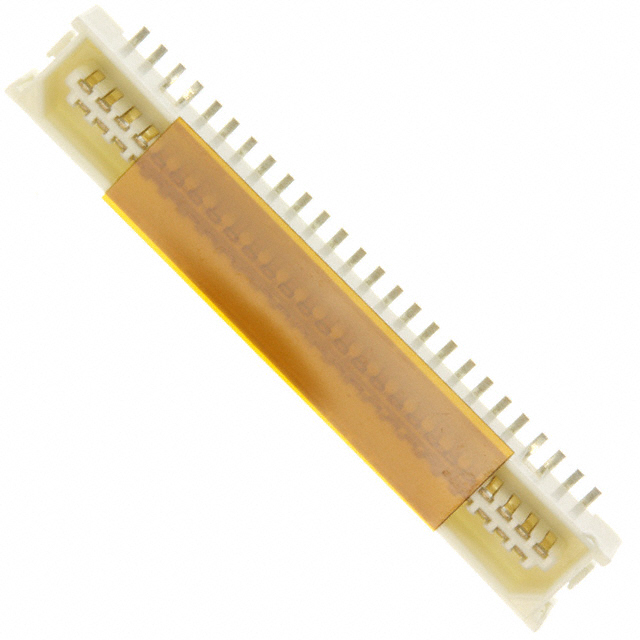

DF9A-51S-1V(69)

Obsolete

Hirose Electric USA, Inc.

CONN RCPT 51POS SMD GOLD

Search across all available documentation for this part.

Obsolete

Hirose Electric USA, Inc.

CONN RCPT 51POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	DF9A-51S-1V(69)

Connector Type	Receptacle, Outer Shroud Contacts
Contact Finish	Gold
Contact Finish Thickness	8 çin
Contact Finish Thickness	0.203 çm
Features	Board Guide
Height Above Board	0.13 in
Height Above Board	3.3 mm
Mated Stacking Heights [z]	4.3 mm
Mounting Type	Surface Mount
Number of Positions	51
Number of Rows	2
Pitch [x]	0.039 in
Pitch [x]	1 mm

Part	Pitch [x]	Pitch [x]	Mated Stacking Heights [z]	Number of Rows	Connector Type	Height Above Board	Height Above Board	Mounting Type	Features	Contact Finish	Number of Positions	Contact Finish Thickness	Contact Finish Thickness
Hirose Electric USA, Inc. DF9A-25P-1V(22)	0.039 in	1 mm	4.3 mm	2	Header Center Strip Contacts	0.13 in	3.3 mm	Surface Mount	Board Guide	Tin
Hirose Electric USA, Inc. DF9A-17P-1V(22)	0.039 in	1 mm	4.3 mm	2	Header Center Strip Contacts	0.13 in	3.3 mm	Surface Mount	Board Guide	Tin
Hirose Electric USA, Inc. DF9A-41S-1V(20)	0.039 in	1 mm	4.3 mm	2	Receptacle Outer Shroud Contacts	0.13 in	3.3 mm	Surface Mount	Board Guide	Tin	41
Hirose Electric USA, Inc. DF9A-19P-1V(69)
Hirose Electric USA, Inc. DF9A-11P-1V(69)	0.039 in	1 mm	4.3 mm	2	Header Center Strip Contacts	0.13 in	3.3 mm	Surface Mount	Board Guide	Gold	11
Hirose Electric USA, Inc. DF9A-51P-1V(69)	0.039 in	1 mm	4.3 mm	2	Header Center Strip Contacts	0.13 in	3.3 mm	Surface Mount	Board Guide	Gold	51
Hirose Electric USA, Inc. DF9A-51S-1V(69)	0.039 in	1 mm	4.3 mm	2	Receptacle Outer Shroud Contacts	0.13 in	3.3 mm	Surface Mount	Board Guide	Gold	51	8 çin	0.203 çm
Hirose Electric USA, Inc. DF9A-41S-1V(22)	0.039 in	1 mm	4.3 mm	2	Receptacle Outer Shroud Contacts	0.13 in	3.3 mm	Surface Mount	Board Guide	Tin	41
Hirose Electric USA, Inc. DF9A-21S-1V(22)	0.039 in	1 mm	4.3 mm	2	Receptacle Outer Shroud Contacts	0.13 in	3.3 mm	Surface Mount	Board Guide	Tin	21
Hirose Electric USA, Inc. DF9A-31P-1V(22)	0.039 in	1 mm	4.3 mm	2	Header Center Strip Contacts	0.13 in	3.3 mm	Surface Mount	Board Guide	Tin	31

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

51 Position Connector Receptacle, Outer Shroud Contacts Surface Mount Gold
