S-34C04AB-A8T3U5
ActiveABLIC Inc.
IC EEPROM 4KBIT I2C 1MHZ 8DFN
Deep-Dive with AI
Search across all available documentation for this part.
S-34C04AB-A8T3U5
ActiveABLIC Inc.
IC EEPROM 4KBIT I2C 1MHZ 8DFN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | S-34C04AB-A8T3U5 |
|---|---|
| Memory Format | EEPROM |
| Memory Interface | I2C |
| Memory Organization [custom] | 512 |
| Memory Organization [custom] | 8 |
| Memory Size | 4 Kbit |
| Memory Type | Non-Volatile |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -20 °C |

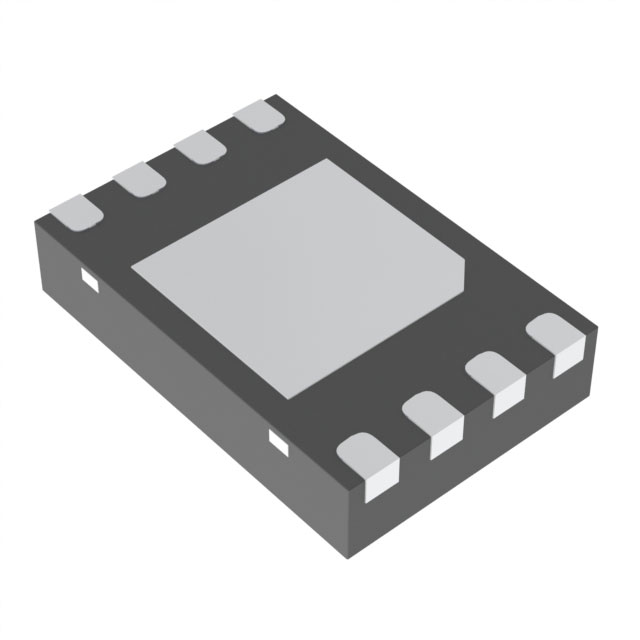

| Package / Case | 8-UFDFN Exposed Pad |
| Supplier Device Package | 8-DFN (2x3) |
| Technology | EEPROM |
| Voltage - Supply [Max] | 3.6 V |
| Voltage - Supply [Min] | 1.7 V |
| Write Cycle Time - Word, Page | 5 ms |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.85 | |
| 10 | $ 0.79 | |||
| 25 | $ 0.77 | |||
| 50 | $ 0.76 | |||
| 100 | $ 0.74 | |||
| 250 | $ 0.72 | |||
| 500 | $ 0.70 | |||
| 1000 | $ 0.68 | |||
Description
General part information
S-34C04 Series
EEPROM Memory IC 4Kbit I2C 1 MHz 8-DFN (2x3)
Documents
Technical documentation and resources
No documents available
