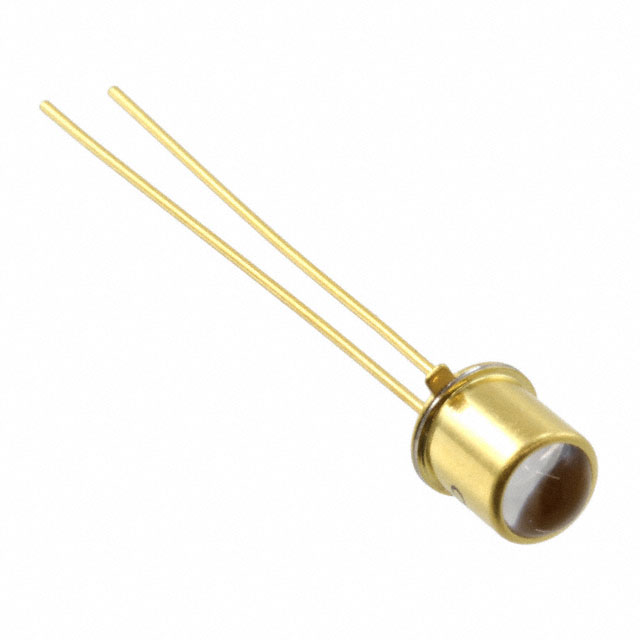

OP235TX
ActiveTT Electronics/Optek Technology
EMITTER IR 890NM 100MA TO-46
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
OP235TX
ActiveTT Electronics/Optek Technology
EMITTER IR 890NM 100MA TO-46
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | OP235TX |
|---|---|
| Current - DC Forward (If) (Max) [Max] | 100 mA |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Orientation | Top View |
| Package / Case | TO-46-2 Lens Top Metal Can |
| Type | Infrared (IR) |
| Viewing Angle | 18 ° |
| Voltage - Forward (Vf) (Typ) | 1.55 V |
| Wavelength | 890 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 100 | $ 34.92 | |
Description
General part information
OP235 Series
Infrared (IR) Emitter 890nm 1.55V 100mA 18° TO-46-2 Lens Top Metal Can
