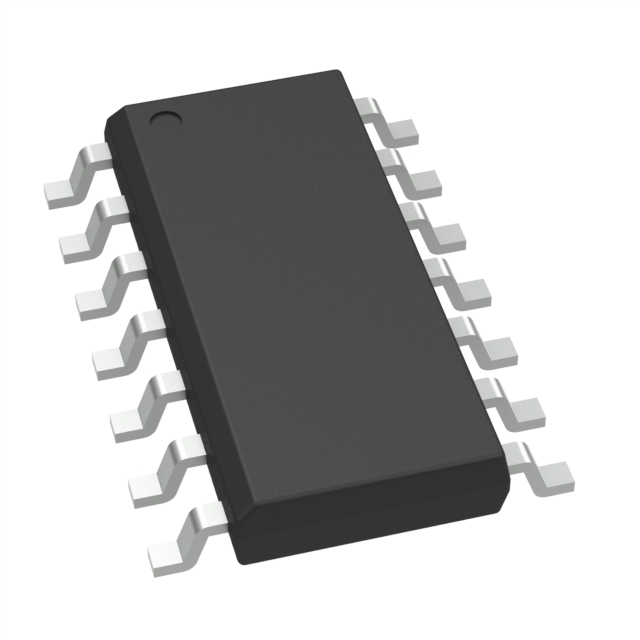

74AHC04S14-13

Active

Diodes Inc

IC: DIGITAL; INVERTER; CH: 6; IN: 1; CMOS; SMD; SO14; 2÷5.5VDC; AHC

Search across all available documentation for this part.

Active

Diodes Inc

IC: DIGITAL; INVERTER; CH: 6; IN: 1; CMOS; SMD; SO14; 2÷5.5VDC; AHC

Technical Specifications

Parameters and characteristics for this part

Specification	74AHC04S14-13

Current - Output High, Low [custom]	8 mA
Current - Output High, Low [custom]	8 mA
Current - Quiescent (Max) [Max]	20 µA
Input Logic Level - High [Max]	3.85 V
Input Logic Level - High [Min]	1.5 V
Input Logic Level - Low [Max]	1.65 V
Input Logic Level - Low [Min]	0.5 V
Logic Type	Inverter
Max Propagation Delay @ V, Max CL	7.5 ns
Mounting Type	Surface Mount
Number of Circuits	6
Number of Inputs	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	14-SOIC
Package / Case [x]	0.154 in
Package / Case [y]	3.9 mm
Supplier Device Package	14-SO
Voltage - Supply [Max]	5.5 V
Voltage - Supply [Min]	2 V

Hex Inverters

Part	Number of Inputs	Input Logic Level - High [Max]	Input Logic Level - High [Min]	Supplier Device Package	Current - Output High, Low [custom]	Current - Output High, Low [custom]	Max Propagation Delay @ V, Max CL	Input Logic Level - Low [Min]	Input Logic Level - Low [Max]	Mounting Type	Number of Circuits	Logic Type	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Supply [Max]	Voltage - Supply [Min]	Current - Quiescent (Max) [Max]	Package / Case [x]	Package / Case [y]	Package / Case	Package / Case [custom]	Package / Case [custom]
Diodes Inc 74AHC04S14-13	1	3.85 V	1.5 V	14-SO	8 mA	8 mA	7.5 ns	0.5 V	1.65 V	Surface Mount	6	Inverter	-40 °C	125 °C	5.5 V	2 V	20 µA	0.154 in	3.9 mm	14-SOIC
Diodes Inc 74AHC04T14-13	1	3.85 V	1.5 V	14-TSSOP	8 mA	8 mA	7.5 ns	0.5 V	1.65 V	Surface Mount	6	Inverter	-40 °C	125 °C	5.5 V	2 V	20 µA			14-TSSOP	0.173 "	4.4 mm
