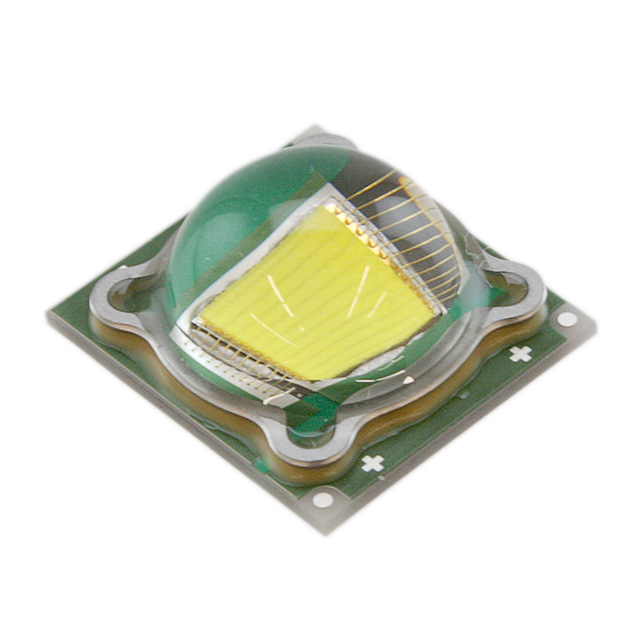

SST-90-W57S-F11-N2200

Obsolete

Luminus Devices Inc.

LED COB SST-90 COOL WH SQ 5700K

Search across all available documentation for this part.

Obsolete

Luminus Devices Inc.

LED COB SST-90 COOL WH SQ 5700K

Technical Specifications

Parameters and characteristics for this part

Specification	SST-90-W57S-F11-N2200

CCT (K)	5700 K
Color	Cool, White
Configuration	Square
CRI (Color Rendering Index)	70
Current - Max [Max]	9 A
Current - Test	3.15 A
Height [z]	5.4 mm
Lens Type	Domed
Light Emitting Surface (LES) [diameter]	8 mm
Lumens/Watt @ Current - Test	90 lm/W
Luminous Flux @ Current/Temperature	925 lm
Size / Dimension [x]	11 mm
Size / Dimension [y]	10 mm
Type	Chip On Board (COB)
Viewing Angle	100 °
Voltage - Forward (Vf) (Typ)	3.25 V

Part	Supplier Device Package	Package / Case	Current - Test	Thermal Resistance of Package [custom]	Lumens/Watt @ Current - Test	Color	Viewing Angle	Current - Max [Max]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max] [z]	Mounting Type	Wavelength	Wavelength [Min]	Wavelength [Max]	Voltage - Forward (Vf) (Typ)	Luminous Flux @ Current/Temperature	Configuration	Lens Type	Light Emitting Surface (LES) [diameter]	CRI (Color Rendering Index)	Height [z]	Type	CCT (K)
Luminus Devices Inc. SST-90-R-F11-HH101	SMD	0404	3.15 A	0.64 °C/W	53 lm/W	Red	28 °	18 A	11 mm	0.433 in	10 mm	0.394 in	5.45 mm	0.215 "	Surface Mount	623 nm	619 nm	627 nm	2.1 V
Luminus Devices Inc. SST-90-G-F11-JG201			3.15 A		80 lm/W	Green	100 °	27 A		11 mm		10 mm				537 nm			3.4 V	855 lm	Square	Domed	8 mm	70	5.4 mm	Chip On Board (COB)
Luminus Devices Inc. SST-90-G-F11-JJ201			3.15 A		80 lm/W	Green	100 °	27 A		11 mm		10 mm				537 nm			3.4 V	855 lm	Square	Domed	8 mm	70	5.4 mm	Chip On Board (COB)
Luminus Devices Inc. SST-90-W57S-F11-N2200			3.15 A		90 lm/W	Cool White	100 °	9 A		11 mm		10 mm							3.25 V	925 lm	Square	Domed	8 mm	70	5.4 mm	Chip On Board (COB)	5700 K
Luminus Devices Inc. SST-90-B-F11-KG300			3.15 A		17 lm/W	Blue	100 °	27 A		11 mm		10 mm				465 nm			3.4 V	180 lm	Square	Domed	8 mm	70	5.4 mm	Chip On Board (COB)
Luminus Devices Inc. SST-90-W65S-T11-N3102			3.15 A		95 lm/W	Cool White	100 °	9 A		11 mm		10 mm							3.25 V	975 lm	Square	Domed	8 mm	70	5.4 mm	Chip On Board (COB)	6500 K

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

LED Lighting COBs Engines Modules Chip On Board (COB) SST-90 White, Cool Square
