LF1D-EN2F-2W-56S01

Obsolete

IDEC

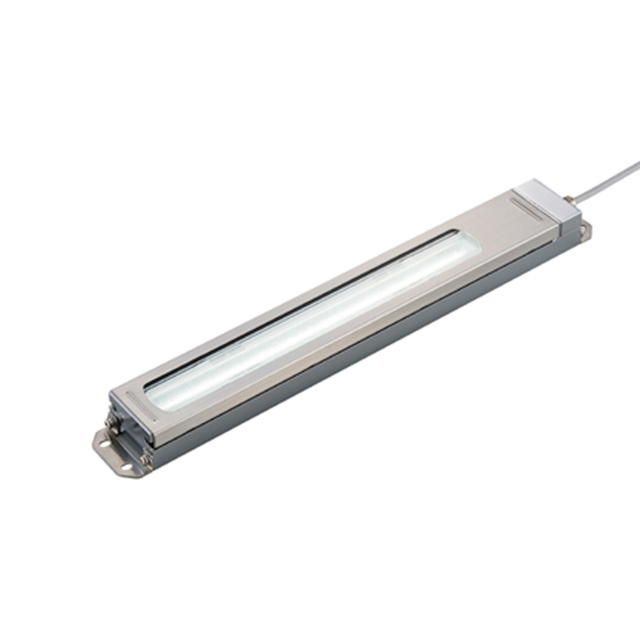

LED BAR IP69K M12 CONNECT

Search across all available documentation for this part.

Obsolete

IDEC

LED BAR IP69K M12 CONNECT

Technical Specifications

Parameters and characteristics for this part

Specification	LF1D-EN2F-2W-56S01

Approval Agency	cULus, CE
Housing Material	Aluminum (Al)
Illumination Color	White, Cool
Ingress Protection	IP67F/IP69K - Dust Tight, Oil and Water Resistant, Waterproof
Length [x]	15.35 "
Length [x]	390 mm
Lens Type	Flat, Clear
Luminous Flux	1530 lm
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-30 ░C
Power - Rated	10 W
Profile (W x H) [x]	49.8 mm
Profile (W x H) [x]	1.96 in
Profile (W x H) [y]	29.8 mm
Profile (W x H) [y]	1.17 in
Rated Life	50000 Hours
Termination Style	Connector (M12)
Voltage - Supply	24 VDC

Part	Housing Material	Profile (W x H) [y]	Profile (W x H) [x]	Profile (W x H) [x]	Profile (W x H) [y]	Ingress Protection	Rated Life	Approval Agency	Operating Temperature [Max]	Operating Temperature [Min]	Length [x]	Length [x]	Termination Style	Luminous Flux	Illumination Color	Lens Type	Power - Rated	Voltage - Supply
IDEC LF1D-EN2F-2W-56S01	Aluminum (Al)	29.8 mm	49.8 mm	1.96 in	1.17 in	IP67F/IP69K - Dust Tight Oil and Water Resistant Waterproof	50000 Hours	CE cULus	55 °C	-30 ░C	15.35 "	390 mm	Connector (M12)	1530 lm	Cool White	Clear Flat	10 W	24 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

LED BAR IP69K M12 CONNECT

Technical documentation and resources

No documents available
