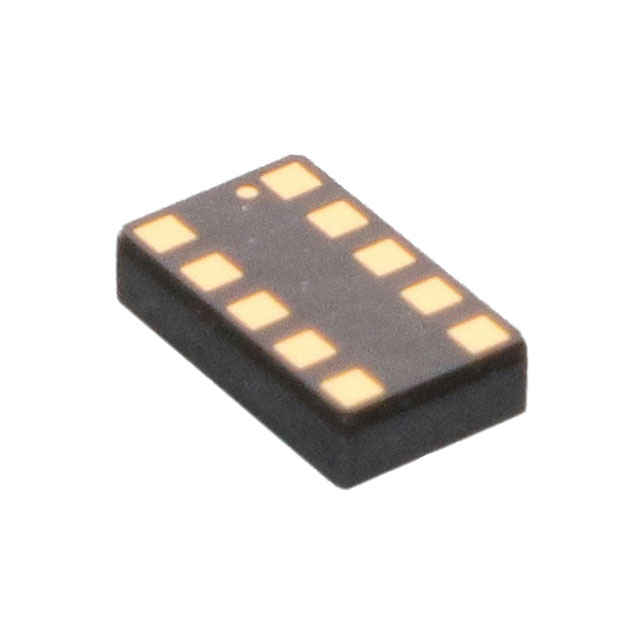

SI1153-AB9X-GM
ObsoleteSilicon Labs
SENSOR OPT 940NM AMBIENT 10 LLGA
Deep-Dive with AI
Search across all available documentation for this part.
SI1153-AB9X-GM
ObsoleteSilicon Labs
SENSOR OPT 940NM AMBIENT 10 LLGA
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SI1153-AB9X-GM |
|---|---|
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Type | I2C |
| Package / Case | 10-LLGA |
| Proximity Detection | True |
| Supplier Device Package | 10-LGA |
| Supplier Device Package [x] | 4.9 |
| Supplier Device Package [y] | 2.85 |
| Type | Gesture, Ambient |
| Voltage - Supply [Max] | 3.6 V |
| Voltage - Supply [Min] | 1.62 V |
| Wavelength | 940 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Strip | 1 | $ 10.02 | |
| 5 | $ 8.45 | |||
| 10 | $ 7.85 | |||
| 25 | $ 7.12 | |||
| 50 | $ 6.62 | |||
| 100 | $ 6.15 | |||
| 500 | $ 5.19 | |||
| 1000 | $ 4.83 | |||
Description
General part information
SI1153 Series
Optical Sensor Ambient, Gesture 940nm I2C 10-LLGA
