ED550/14DS
ActiveOn Shore Technology Inc.

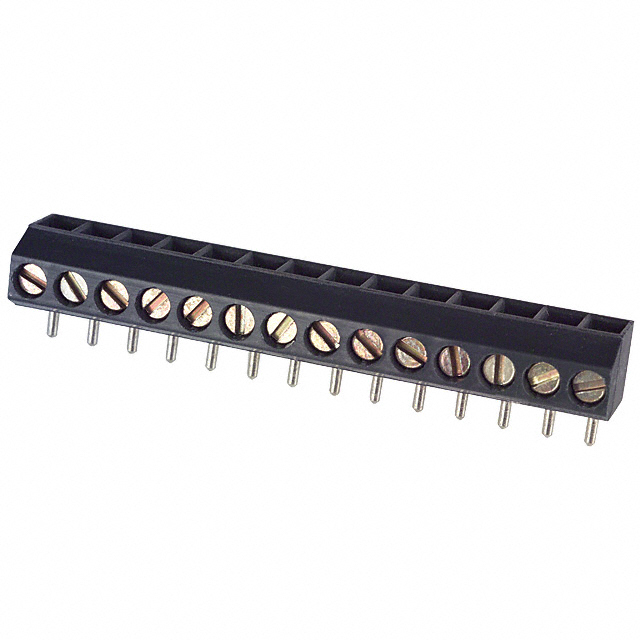

TERM BLK 14POS TOP ENT 3.5MM PCB
Deep-Dive with AI
Search across all available documentation for this part.
ED550/14DS
ActiveOn Shore Technology Inc.
TERM BLK 14POS TOP ENT 3.5MM PCB
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ED550/14DS |
|---|---|
| Clamp Material - Plating | Stainless, Steel |
| Color | Gray |
| Contact Material - Plating [custom] | Brass |
| Current | 6 A |
| Housing Material | Polyamide (PA), Nylon |
| Mating Orientation | Vertical with Board |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -30 ░C |
| Pitch [x] | 3.5 mm |
| Pitch [x] | 0.138 in |
| Positions Per Level | 14 |
| Screw Thread | M2 |
| Torque - Screw | 0.4 Nm |
| Torque - Screw | 3.5 Lb-In |
| Voltage | 125 V |
| Wire Gauge [Max] | 28 AWG |
| Wire Gauge [Min] | 16 AWG |
| Wire Termination | Screw - Leaf Spring, Wire Guard |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 4.80 | |
| 10 | $ 3.66 | |||
| 25 | $ 3.43 | |||
| 50 | $ 3.05 | |||
| 100 | $ 2.98 | |||
| 300 | $ 2.75 | |||
| 500 | $ 2.48 | |||
| 1000 | $ 2.20 | |||
Description
General part information
ED550 Series
14 Position Wire to Board Terminal Block Vertical with Board 0.138" (3.50mm) Through Hole
