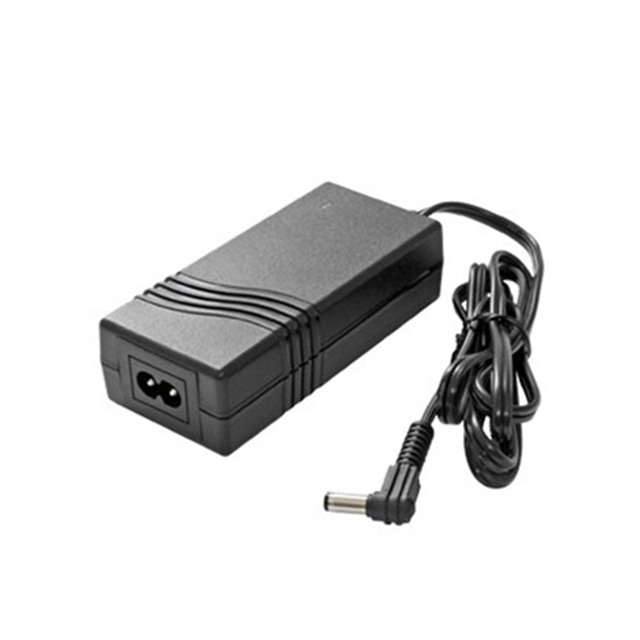

PDM30US24

Obsolete

XP POWER

AC/DC DESKTOP ADAPTER 24V 30W

Search across all available documentation for this part.

Obsolete

XP POWER

AC/DC DESKTOP ADAPTER 24V 30W

Technical Specifications

Parameters and characteristics for this part

Part	Efficiency	Approval Agency	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Current - Output (Max) [Max]	Voltage - Output	Form	Region Utilized	Operating Temperature [Max]	Polarization	Input Connector	Output Connector	Output Connector [diameter]	Output Connector [x]	Voltage - Input [Max]	Voltage - Input [Min]	Input Type	Cord Length	Cord Length	Applications	Power (Watts)
XP POWER PDM30US05	74 %	CE	1.98 in	1.2 "	110 mm	4.33 in	30.5 mm	50.3 mm	4 A	5 V	Desktop (Class II)	International	60 °C	Positive Center	IEC 320-C8	Barrel Plug	2.5 mm 5.5 mm	12 mm	264 VAC	80 VAC	Cord	1.22 m	48 in	Medical	20 W
XP POWER PDM30US12		CE	1.98 in	1.2 "	110 mm	4.33 in	30.5 mm	50.3 mm	2.5 A	12 V	Desktop (Class II)	International	60 °C	Positive Center	IEC 320-C8	Barrel Plug	2.5 mm 5.5 mm	12 mm	264 VAC	80 VAC	Cord	1.22 m	48 in	Medical	30 W
XP POWER PDM30US24	83 %	CE	1.98 in	1.2 "	110 mm	4.33 in	30.5 mm	50.3 mm	1.25 A	24 V	Desktop (Class II)	International	60 °C	Positive Center	IEC 320-C8	Barrel Plug	2.5 mm 5.5 mm	12 mm	264 VAC	80 VAC	Cord	1.22 m	48 in	Medical	30 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

24V 30 W AC/DC External Desktop (Class II) Adapter Cord (Sold Separately) Input
