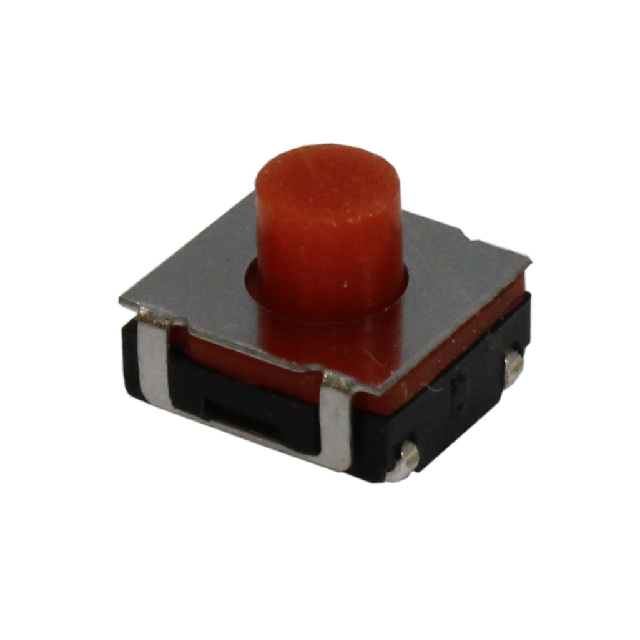

CS33045.1J

Active

CIT Relay and Switch

SWITCH TACTILE SPST-NO 0.05A 50V

Search across all available documentation for this part.

Active

CIT Relay and Switch

SWITCH TACTILE SPST-NO 0.05A 50V

Technical Specifications

Parameters and characteristics for this part

Specification	CS33045.1J

Actuator Height off PCB, Vertical [z]	5.1 mm
Actuator Material	Rubber
Actuator Orientation	Top Actuated
Actuator Type	Standard
Circuit	SPST-NO
Contact Rating @ Voltage	50 VDC, 0.05 A
Illumination	Non-Illuminated
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Outline [x]	6.4 mm
Outline [y]	6.25 mm
Switch Function	Off-Mom
Switch Travel	0.25 mm
Termination Style	J Lead

Part	Contact Rating @ Voltage	Illumination	Circuit	Mounting Type	Actuator Orientation	Termination Style	Outline [y]	Outline [x]	Switch Travel	Switch Function	Actuator Type	Actuator Height off PCB, Vertical [z]	Actuator Material	Operating Temperature [Max]	Operating Temperature [Min]
CIT Relay and Switch CS33045.1J	0.05 A 50 VDC	Non-Illuminated	SPST-NO	Surface Mount	Top Actuated	J Lead	6.25 mm	6.4 mm	0.25 mm	Off-Mom	Standard	5.1 mm	Rubber	85 °C	-40 °C
CIT Relay and Switch CS33045.1G	0.05 A 50 VDC	Non-Illuminated	SPST-NO	Surface Mount	Top Actuated	Gull Wing	6.25 mm	6.4 mm	0.25 mm	Off-Mom	Standard	5.1 mm	Rubber	85 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Tactile Switch SPST-NO Top Actuated Surface Mount
