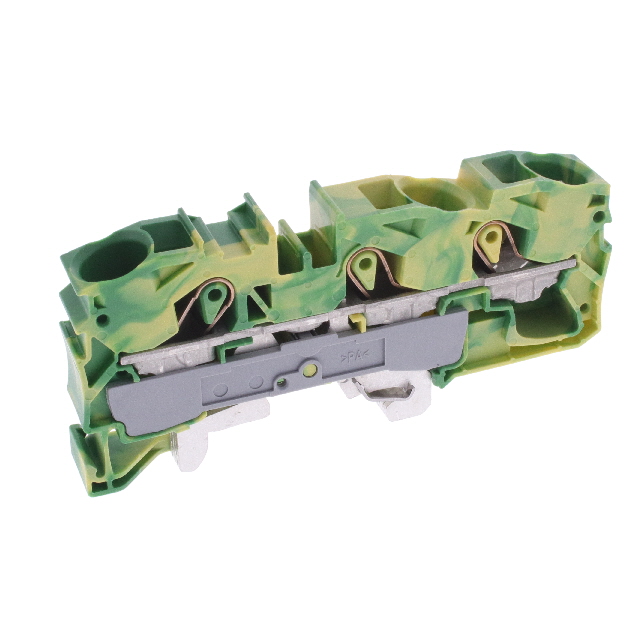

2016-1307
ActiveWAGO Corporation
3-CONDUCTOR GROUND TERMINAL BLOC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2016-1307
ActiveWAGO Corporation
3-CONDUCTOR GROUND TERMINAL BLOC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 2016-1307 |
|---|---|
| Color | Green, Yellow |
| Material - Insulation | Polyamide (PA66), Nylon 6/6 |
| Number of Levels | 1 |
| Stripping Length [Max] | 20 mm |
| Stripping Length [Min] | 18 mm |
| Terminal - Width [y] | 12 mm |
| Termination Style | Push In, Spring |
| Type | Ground, Earth |
| Wire Gauge or Range - AWG [Max] | 14 AWG |
| Wire Gauge or Range - AWG [Min] | 6 AWG |
| Wire Gauge or Range - mm² [Max] | 16 mm² |
| Wire Gauge or Range - mm² [Min] | 6 mm² |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 15.14 | |
| 10 | $ 13.32 | |||
| 100 | $ 11.73 | |||
| 1000 | $ 9.46 | |||
Description
General part information
2016-130 Series
Terminal Block Connector 3 Position Ground, Earth Green, Yellow 6-14 AWG
