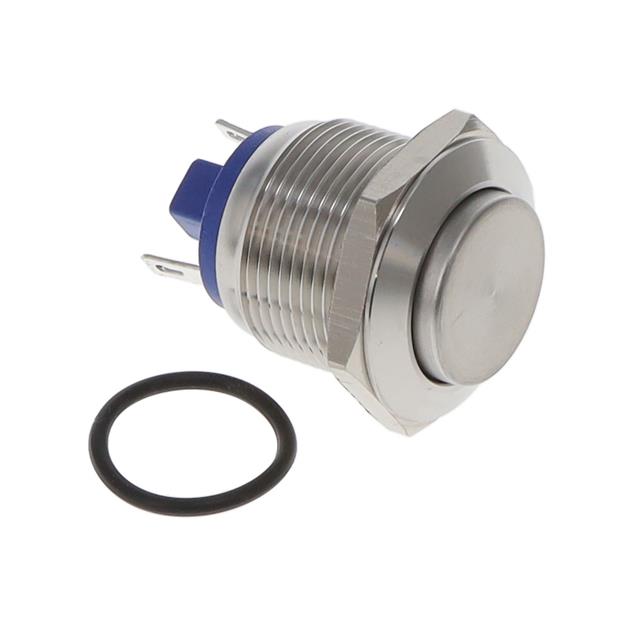

BH19NRSBX

Active

CIT Relay and Switch

SWITCH PB SPST 1A 125V

Search across all available documentation for this part.

Active

CIT Relay and Switch

SWITCH PB SPST 1A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	BH19NRSBX

Actuator Marking	No Marking
Actuator Type	Round, Button
Circuit	SPST-NO
Color - Actuator/Cap	Silver
Current Rating (Amps)	2 A, 1 A
Electrical Life	50000 Cycles
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	19 mm
Switch Function	Off-Mom
Termination Style	Solder Lug
Type	Anti-Vandal
Voltage Rating - AC	125 V
Voltage Rating - DC	36 VDC

Part	Panel Cutout Dimensions [diameter]	Voltage Rating - AC	Voltage Rating - DC	Termination Style	Type	Color - Actuator/Cap	Ingress Protection	Mounting Type	Actuator Marking	Operating Temperature [Max]	Operating Temperature [Min]	Switch Function	Circuit	Current Rating (Amps)	Electrical Life	Actuator Type
CIT Relay and Switch BH19NRSBX	19 mm	125 V	36 VDC	Solder Lug	Anti-Vandal	Silver	IP67 - Dust Tight Waterproof	Panel Mount Front	No Marking	55 °C	-25 °C	Off-Mom	SPST-NO	1 A 2 A	50000 Cycles	Button Round

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPST-NO Anti-Vandal Panel Mount, Front
