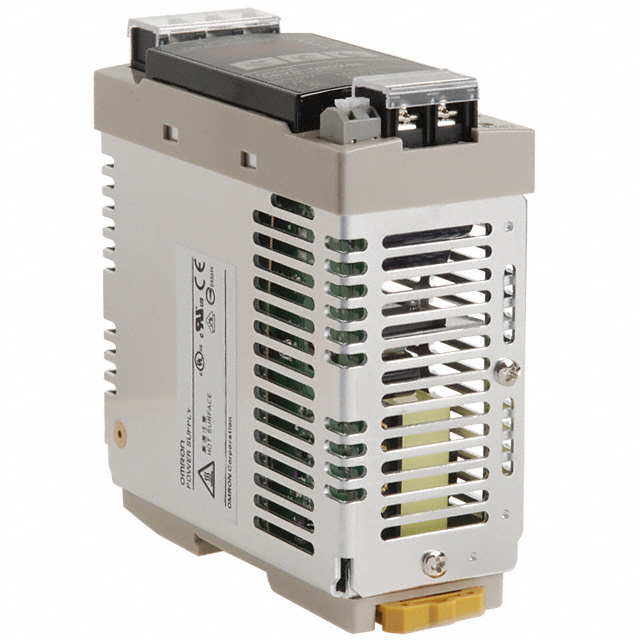

S8VS-12024AP

Active

Omron Electronics Inc-EMC Div

AC/DC DIN RAIL SUPPLY 24V 120W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

S8VS-12024AP

Active

Omron Electronics Inc-EMC Div

AC/DC DIN RAIL SUPPLY 24V 120W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	S8VS-12024AP

AC Voltage - Input [Max]	240 VAC
AC Voltage - Input [Min]	100 VAC
Applications	ITE (Commercial)
Approval Agency	cULus, VDE, CE, cURus
Current - Output (Max) [Max]	5 A
Efficiency	80 %
Features	Adjustable Output, Universal Input
Input Type	AC
Number of Outputs	1
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-10 °C
Size / Dimension [x]	121.3 mm
Size / Dimension [x]	4.78 in
Size / Dimension [y]	50 mm
Size / Dimension [y]	1.97 "
Size / Dimension [z]	115 mm
Size / Dimension [z]	4.53 "
Voltage - Isolation	3000 V
Voltage - Output 1	24 V

S8VS-12024 Series

Part	Input Type	Efficiency	Voltage - Output 1	Approval Agency	Current - Output (Max) [Max]	Applications	Voltage - Isolation	Number of Outputs	AC Voltage - Input [Min]	AC Voltage - Input [Max]	Features	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]
Omron Electronics Inc-EMC Div S8VS-12024AP-F	AC	80 %	24 V	CE cULus cURus VDE	5 A	ITE (Commercial)	3000 V	1	100 VAC	240 VAC	Adjustable Output Universal Input	-10 °C	60 °C	121.3 mm	50 mm	115 mm	1.97 "	4.78 in	4.53 "
Omron Electronics Inc-EMC Div S8VS-12024A-F	AC	80 %	24 V	CE cULus cURus VDE	5 A	ITE (Commercial)	3000 V	1	100 VAC	240 VAC	Adjustable Output Universal Input	-10 °C	60 °C	121.3 mm	50 mm	115 mm	1.97 "	4.78 in	4.53 "
Omron Electronics Inc-EMC Div S8VS-12024BE-F	AC	80 %	24 V	CE cULus cURus VDE	5 A	ITE (Commercial)	3000 V	1	100 VAC	240 VAC	Adjustable Output Universal Input	-10 °C	60 °C	121.3 mm	50 mm	115 mm	1.97 "	4.78 in	4.53 "
Omron Electronics Inc-EMC Div S8VS-12024AP	AC	80 %	24 V	CE cULus cURus VDE	5 A	ITE (Commercial)	3000 V	1	100 VAC	240 VAC	Adjustable Output Universal Input	-10 °C	60 °C	121.3 mm	50 mm	115 mm	1.97 "	4.78 in	4.53 "
Omron Electronics Inc-EMC Div S8VS-12024BP-F	AC	80 %	24 V	CE cULus cURus VDE	5 A	ITE (Commercial)	3000 V	1	100 VAC	240 VAC	Adjustable Output Universal Input	-10 °C	60 °C	121.3 mm	50 mm	115 mm	1.97 "	4.78 in	4.53 "
Omron Electronics Inc-EMC Div S8VS-12024B-F	AC	80 %	24 V	CE cULus cURus VDE	5 A	ITE (Commercial)	3000 V	1	100 VAC	240 VAC	Adjustable Output Universal Input	-10 °C	60 °C	121.3 mm	50 mm	115 mm	1.97 "	4.78 in	4.53 "
Omron Electronics Inc-EMC Div S8VS-12024BP	AC	80 %	24 V	CE cULus cURus VDE	5 A	ITE (Commercial)	3000 V	1	100 VAC	240 VAC	Adjustable Output Universal Input	-10 °C	60 °C	121.3 mm	50 mm	115 mm	1.97 "	4.78 in	4.53 "
Omron Electronics Inc-EMC Div S8VS-12024BE	AC	80 %	24 V	CE cULus cURus VDE	5 A	ITE (Commercial)	3000 V	1	100 VAC	240 VAC	Adjustable Output Universal Input	-10 °C	60 °C	121.3 mm	50 mm	115 mm	1.97 "	4.78 in	4.53 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 279.75
		10	$ 270.10
		25	$ 265.28

Description

General part information

S8VS-12024 Series

AC/DC DIN RAIL SUPPLY 24V 120W
