TA-C12B-A-Z01

Active

Unictron Technologies Corporation

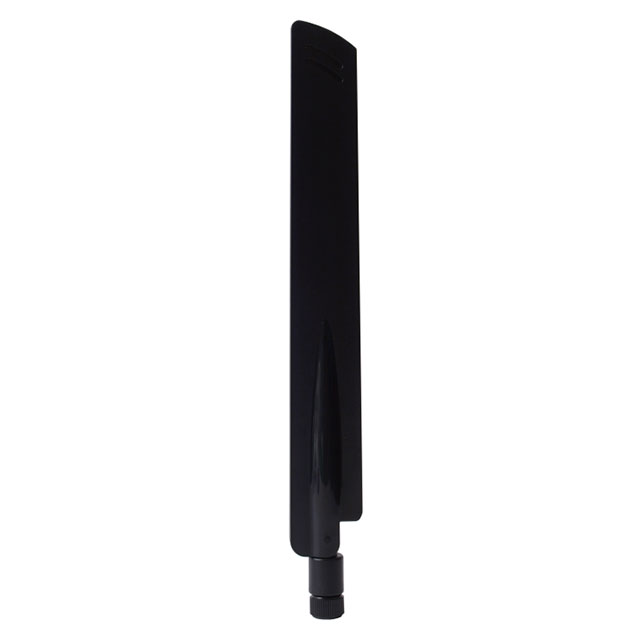

5G LTE HINGE TERMINAL ANTENNA

Search across all available documentation for this part.

Active

Unictron Technologies Corporation

5G LTE HINGE TERMINAL ANTENNA

Technical Specifications

Parameters and characteristics for this part

Specification	TA-C12B-A-Z01

Antenna Type	Whip, Straight
Applications	DCS, Wi-Fi, 5G, UMTS, GSM, PCS, LTE
Frequency (Center/Band)	1.795 GHz, 657.5 MHz, 2.045 GHz, 892 MHz, 761 MHz, 4.45 GHz, 5.4625 GHz, 3.55 GHz, 1.92 GHz, 2.495 GHz
Frequency Group	Wide Band
Frequency Range [Max]	960 MHz, 1.88 GHz, 824 MHz, 698 MHz, 2.17 GHz, 1.99 GHz, 4.7 GHz, 2.69 GHz, 3.8 GHz, 5.925 GHz
Frequency Range [Min]	2.3 GHz, 1920 MHz, 5 GHz, 698 MHz, 1.85 GHz, 1.71 GHz, 3.3 GHz, 824 MHz, 4.2 GHz, 617 MHz
Gain	6.57 dBi, 5.21 dBi, 1.29 dBi, 7.72 dBi, 3.77 dBi, 4.55 dBi, 5.14 dBi, 2 dBic, 5.49 dBi
Height (Max) [Max] [z]	220 mm
Height (Max) [Max] [z]	8.661 in
Mounting Type	Connector Mount
Number of Bands	10
Return Loss	-4 dB, -2 dB, -7 dB, -10 dB, -9 dB
RF Family/Standard	Cellular, WiFi
VSWR	4.5, 2, 4.4, 4.1, 2.5, 1.9, 7.5, 2.1, 2.7

Part	Mounting Type	RF Family/Standard	Height (Max) [Max] [z]	Height (Max) [Max] [z]	Return Loss	Number of Bands	Antenna Type	Applications	VSWR	Frequency (Center/Band)	Frequency Range [Min]	Frequency Range [Max]	Frequency Group	Gain
Unictron Technologies Corporation TA-C12B-A-Z01	Connector Mount	Cellular WiFi	220 mm	8.661 in	-10 dB -9 dB -7 dB -4 dB -2 dB	10	Whip Straight	5G DCS GSM LTE PCS UMTS Wi-Fi	1.9 2 2.1 2.5 2.7 4.1 4.4 4.5 7.5	1.795 GHz 1.92 GHz 2.045 GHz 2.495 GHz 3.55 GHz 4.45 GHz 5.4625 GHz 657.5 MHz 761 MHz 892 MHz	1.71 GHz 1.85 GHz 2.3 GHz 3.3 GHz 4.2 GHz 5 GHz 617 MHz 698 MHz 824 MHz 1920 MHz	1.88 GHz 1.99 GHz 2.17 GHz 2.69 GHz 3.8 GHz 4.7 GHz 5.925 GHz 698 MHz 824 MHz 960 MHz	Wide Band	1.29 dBi 2 dBic 3.77 dBi 4.55 dBi 5.14 dBi 5.21 dBi 5.49 dBi 6.57 dBi 7.72 dBi

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF ANTENNA 5G, DCS, GSM, LTE, PCS, UMTS, Wi-Fi Whip, Straight SMA Male Connector Mount
