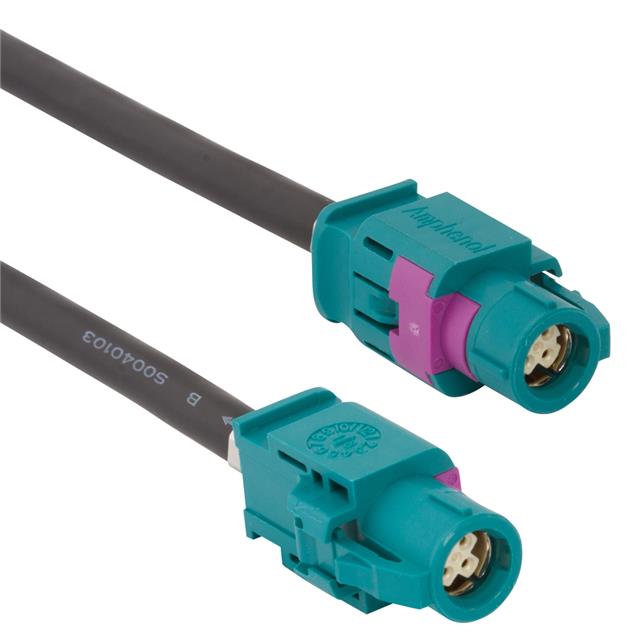

HSDSJZSJZ11-18

Active

Amphenol RF

CBL 4POS FMALE TO FMALE 6.56'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HSDSJZSJZ11-18

Active

Amphenol RF

CBL 4POS FMALE TO FMALE 6.56'

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HSDSJZSJZ11-18

1st Connector Gender	Female Sockets
1st Connector Mounting Type	Free Hanging (In-Line)
1st Connector Number of Positions	4
1st Connector Number of Positions Loaded	All
1st Connector Orientation	Z
1st Connector Type	Receptacle
2nd Connector Gender	Female Sockets
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Connector Number of Positions	4
2nd Connector Number of Positions Loaded	All
2nd Connector Orientation	Z
2nd Connector Type	Receptacle
Assembly Configuration	Standard
Cable Type	Round
Color	Black
Length [x]	2 m
Length [x]	6.56 ft
Shielding	Unshielded

HSDSJZSJZ Series

Part	Color	1st Connector Type	1st Connector Number of Positions	Assembly Configuration	1st Connector Mounting Type	2nd Connector Number of Positions Loaded	2nd Connector Number of Positions	2nd Connector Mounting Type	1st Connector Orientation	2nd Connector Gender	2nd Connector Orientation	Shielding	Cable Type	1st Connector Number of Positions Loaded	2nd Connector Type	1st Connector Gender	Length [x]	Length [x]	Length	Length
Amphenol RF HSDSJZSJZ20-19	Black	Receptacle	4	Standard	Free Hanging (In-Line)	All	4	Free Hanging (In-Line)	Z	Female Sockets	Z	Unshielded	Round	All	Receptacle	Female Sockets
Amphenol RF HSDSJZSJZ05-19	Black	Receptacle	4	Standard	Free Hanging (In-Line)	All	4	Free Hanging (In-Line)	Z	Female Sockets	Z	Unshielded	Round	All	Receptacle	Female Sockets	3 ft	914.4 mm
Amphenol RF HSDSJZSJZ08-19	Black	Receptacle	4	Standard	Free Hanging (In-Line)	All	4	Free Hanging (In-Line)	Z	Female Sockets	Z	Unshielded	Round	All	Receptacle	Female Sockets			4.92 '	1.5 m
Amphenol RF HSDSJZSJZ06-18	Black	Receptacle	4	Standard	Free Hanging (In-Line)	All	4	Free Hanging (In-Line)	Z	Female Sockets	Z	Unshielded	Round	All	Receptacle	Female Sockets	3.28 ft	1 m
Amphenol RF HSDSJZSJZ09-18	Black	Receptacle	4	Standard	Free Hanging (In-Line)	All	4	Free Hanging (In-Line)	Z	Female Sockets	Z	Unshielded	Round	All	Receptacle	Female Sockets			5 '	1.52 m
Amphenol RF HSDSJZSJZ06-19	Black	Receptacle	4	Standard	Free Hanging (In-Line)	All	4	Free Hanging (In-Line)	Z	Female Sockets	Z	Unshielded	Round	All	Receptacle	Female Sockets	3.28 ft	1 m
Amphenol RF HSDSJZSJZ11-18	Black	Receptacle	4	Standard	Free Hanging (In-Line)	All	4	Free Hanging (In-Line)	Z	Female Sockets	Z	Unshielded	Round	All	Receptacle	Female Sockets	6.56 ft	2 m
Amphenol RF HSDSJZSJZ09-19	Black	Receptacle	4	Standard	Free Hanging (In-Line)	All	4	Free Hanging (In-Line)	Z	Female Sockets	Z	Unshielded	Round	All	Receptacle	Female Sockets			5 '	1.52 m
Amphenol RF HSDSJZSJZ03-19	Black	Receptacle	4	Standard	Free Hanging (In-Line)	All	4	Free Hanging (In-Line)	Z	Female Sockets	Z	Unshielded	Round	All	Receptacle	Female Sockets	2 '	609.6 mm
Amphenol RF HSDSJZSJZ02-18	Black	Receptacle	4	Standard	Free Hanging (In-Line)	All	4	Free Hanging (In-Line)	Z	Female Sockets	Z	Unshielded	Round	All	Receptacle	Female Sockets	1.64 ft	500 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 77.65
		10	$ 60.29
		25	$ 54.79
		50	$ 51.08
		100	$ 47.72

Description

General part information

HSDSJZSJZ Series

Cable Assembly 6.56' (2.00m)
