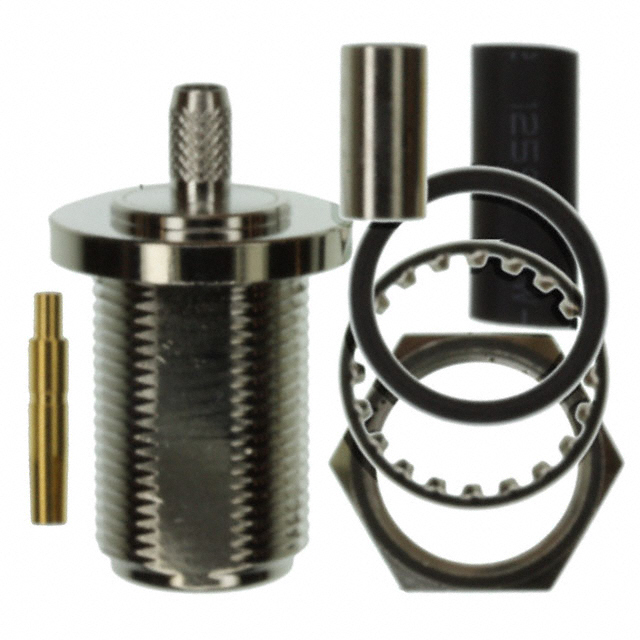

CONN005-R58

Obsolete

TE Connectivity Linx

CONN N RCPT STR 50 OHM SOLDER

Search across all available documentation for this part.

Obsolete

TE Connectivity Linx

CONN N RCPT STR 50 OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	CONN005-R58

Body Finish	Nickel
Body Material	Brass
Cable Group	RG-58
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	N Type
Connector Type	Receptacle, Female Socket
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Housing Color	Silver
Impedance	50 Ohms
Includes	1 Connector, 1 Lockwasher, 1 Ferrule, 1 Contact, 1 Nut
Insertion Loss	0.3 dB
Mating Cycles	500
Mounting Feature	Bulkhead - Front Side Nut
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	500 V

Part	Dielectric Material	Body Material	Frequency - Max [Max]	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Body Finish	Number of Ports	Connector Type	Contact Termination	Mating Cycles	Impedance	Center Contact Material	Shield Termination	Connector Style	Mounting Feature	Center Contact Plating	Insertion Loss	Housing Color	Cable Group	Includes
TE Connectivity Linx CONN005-R58	Polytetrafluoroethylene (PTFE)	Brass	11 GHz	500 V	-65 ░C	165 °C	Nickel	1	Female Socket Receptacle	Solder	500	50 Ohms	Brass	Crimp	N Type	Bulkhead - Front Side Nut	Gold	0.3 dB	Silver	RG-58	1 Connector 1 Contact 1 Ferrule 1 Lockwasher 1 Nut

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

N Type Connector Receptacle, Female Socket 50 Ohms Panel Mount Solder
