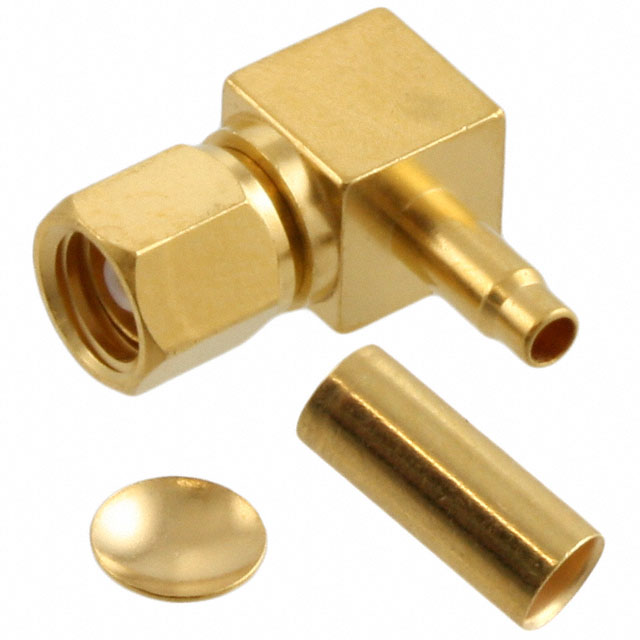

903-288P-52A

Active

Amphenol RF

CONN SMC PLUG R/A 50 OHM SOLDER

Search across all available documentation for this part.

Active

Amphenol RF

CONN SMC PLUG R/A 50 OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	903-288P-52A

Body Finish	Gold
Body Material	Brass
Cable Group	188, 188A, 316, LMR-100, M17/119-RG174, RG-174
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMC
Connector Type	Plug, Female Socket
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Housing Color	Gold
Impedance	50 Ohms
Includes	1 Connector, 1 Ferrule, 1 End Cap
Insertion Loss	0.6 dB
Mating Cycles	500
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp

Part	Center Contact Plating	Operating Temperature [Min]	Operating Temperature [Max]	Shield Termination	Impedance	Dielectric Material	Body Finish	Center Contact Material	Includes	Number of Ports	Contact Termination	Housing Color	Insertion Loss	Mounting Type	Connector Style	Cable Group	Body Material	Connector Type	Mating Cycles
Amphenol RF 903-288P-52A	Gold	-65 ░C	165 °C	Crimp	50 Ohms	Polytetrafluoroethylene (PTFE)	Gold	Beryllium Copper	1 Connector 1 End Cap 1 Ferrule	1	Solder	Gold	0.6 dB	Free Hanging (In-Line) Right Angle	SMC	188 188A 316 LMR-100 M17/119-RG174 RG-174	Brass	Female Socket Plug	500

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMC Connector Plug, Female Socket 50 Ohms Free Hanging (In-Line), Right Angle Solder
