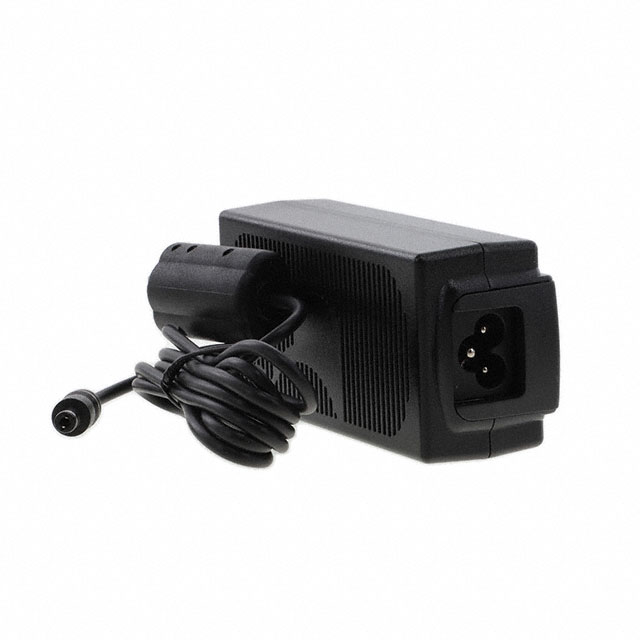

RR9LI2700LCP-IMR6B

Active

GlobTek, Inc.

AC/DC DSKTP/WALL MT ADPT 24V 65W

Search across all available documentation for this part.

Active

GlobTek, Inc.

AC/DC DSKTP/WALL MT ADPT 24V 65W

Technical Specifications

Parameters and characteristics for this part

Specification	RR9LI2700LCP-IMR6B

Applications	ITE (Commercial), Medical
Approval Agency	FCC, S-Mark, UKRSepro, cETLus, VCCI, CE, EAC, PSE, ETL, CB
Cord Length	60.2 in
Cord Length	1.53 m
Current - Output (Max) [Max]	2.7 A
Efficiency	CoC Tier 2, Level VI
Form	Wall Mount (Class I), Desktop
Input Type	Cord, Multi-Blade
No Load Power Consumption [Max]	150 mW
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	-20 C
Output Connector	Barrel Plug
Output Connector [diameter]	5.5 mm, 2.5 mm
Output Connector [x]	11 mm
Polarization	Positive Center
Power (Watts)	65 W
Region Utilized	International
Size / Dimension [x]	4.63 in
Size / Dimension [x]	117.5 mm
Size / Dimension [y]	53.5 mm
Size / Dimension [y]	2.11 in
Size / Dimension [z]	36.6 mm
Size / Dimension [z]	1.44 "
Standard Number	60601-1-2, 62368-1, 60601-1-11
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	24 V

Part	Form	Standard Number	No Load Power Consumption [Max]	Efficiency	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Current - Output (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Polarization	Power (Watts)	Cord Length	Cord Length	Output Connector	Output Connector [diameter]	Output Connector [x]	Input Type	Voltage - Input [Min]	Voltage - Input [Max]	Voltage - Output	Region Utilized	Applications	Approval Agency
GlobTek, Inc. RR9LI2700LCP-IMR6B	Desktop Wall Mount (Class I)	60601-1-11 60601-1-2 62368-1	150 mW	CoC Tier 2 Level VI	36.6 mm	4.63 in	53.5 mm	1.44 "	117.5 mm	2.11 in	2.7 A	-20 C	40 °C	Positive Center	65 W	60.2 in	1.53 m	Barrel Plug	2.5 mm 5.5 mm	11 mm	Cord Multi-Blade	90 VAC	264 VAC	24 V	International	ITE (Commercial) Medical	CB CE cETLus EAC ETL FCC PSE S-Mark UKRSepro VCCI

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

24V 65 W AC/DC External Desktop, Wall Mount (Class I) Adapter Cord, Multi-Blade (Sold Separately) Input
