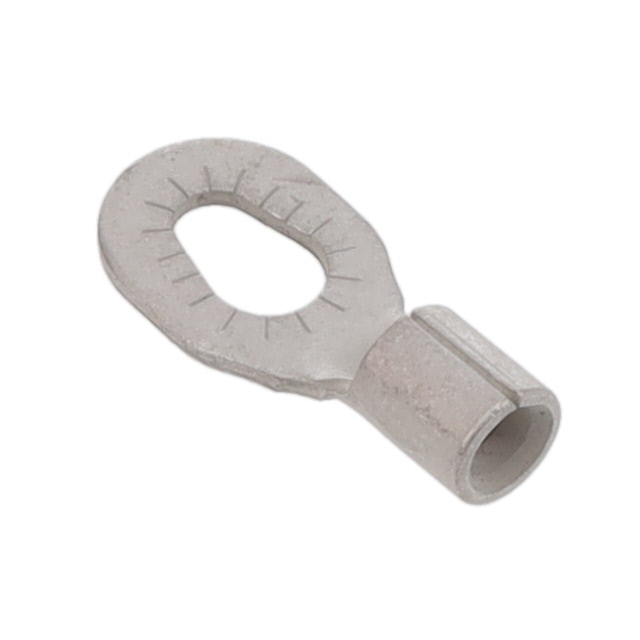

0190790011
ActiveMolex
CONN RING MULT STUD 10-12AWG
Deep-Dive with AI
Search across all available documentation for this part.
0190790011
ActiveMolex
CONN RING MULT STUD 10-12AWG
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 0190790011 |
|---|---|
| Color | Yellow |
| Contact Finish | Tin |
| Contact Material | Copper |
| Insulation | Insulated |
| Length - Overall [x] | 0.89 in |
| Length - Overall [x] | 22.61 mm |
| Material - Insulation | Poly-Vinyl Chloride (PVC) |
| Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | 10 Stud, 8 Stud, 6 Stud |
| Terminal Type | Multi-Stud |
| Termination | Crimp |
| Thickness | 0.04 in |
| Thickness | 1.02 mm |
| Width - Outer Edges [x] | 10.41 mm |
| Width - Outer Edges [x] | 0.41 " |
| Wire Gauge [Max] | 12 AWG |
| Wire Gauge [Min] | 10 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.40 | |
| 10 | $ 0.33 | |||
| 100 | $ 0.24 | |||
| 1000 | $ 0.19 | |||
| 3000 | $ 0.17 | |||
Description
General part information
019079 Series
Ring Terminal Connector 6, 8, 10 Stud Multi-Stud 10-12 AWG Crimp
