V-15-1B6-K

Active

Omron Electronics Inc-EMC Div

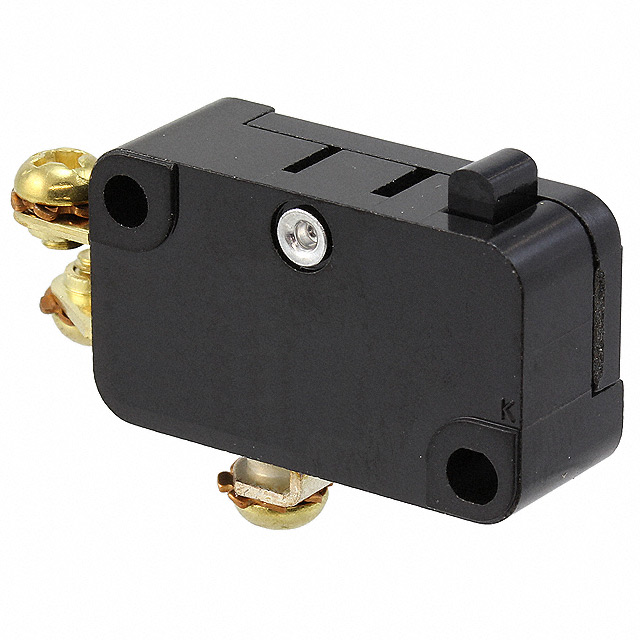

SWITCH SNAP ACTION SPDT 15A 250V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsHow to Read Date Codes Datasheet

V-15-1B6-K

Active

Omron Electronics Inc-EMC Div

SWITCH SNAP ACTION SPDT 15A 250V

Deep-Dive with AI

DocumentsHow to Read Date Codes Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	V-15-1B6-K

Actuator Type	Round (Pin Plunger)
Circuit	SPDT
Current Rating (Amps)	600 mA, 15 A
Differential Travel	0.016 "
Differential Travel	0.4 mm
Electrical Life	100000 Cycles
Ingress Protection	IP40
Mechanical Life	50000000 Cycles
Mounting Type	Chassis Mount
Operating Force	400 gf
Operating Position	0.579 in
Operating Position	14.7 mm
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-25 °C
Overtravel	0.04 in
Overtravel	1 mm
Pretravel	0.047 in
Pretravel	1.2 mm
Release Force	80 gf
Switch Function	On-Mom
Termination Style	Screw Terminal
Voltage Rating - AC	250 V
Voltage Rating - DC	125 VDC

V-15 Series

Part	Circuit	Current Rating (Amps)	Overtravel	Overtravel	Voltage Rating - AC	Actuator Type	Release Force	Electrical Life	Pretravel	Pretravel	Mechanical Life	Operating Position	Operating Position	Differential Travel	Differential Travel	Operating Force	Ingress Protection	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - DC	Switch Function	Termination Style	Termination Style
Omron Electronics Inc-EMC Div V-15G1-1E5-T-K	SPDT	15 A 100 mA	0.76 mm	0.03 in	250 V	Lever Straight	50 gf	20000 Steps	0.063 in	1.6 mm	50000000 Cycles	0.6 in	15.2 mm	0.6 mm	0.025 in	200 gf	IP40	Chassis Mount	150 °C	-25 °C	125 VDC	On-Mom
Omron Electronics Inc-EMC Div V-15-1B6-K	SPDT	15 A 600 mA	1 mm	0.04 in	250 V	Round (Pin Plunger)	80 gf	100000 Cycles	0.047 in	1.2 mm	50000000 Cycles	0.579 in	14.7 mm	0.4 mm	0.016 "	400 gf	IP40	Chassis Mount	80 C	-25 °C	125 VDC	On-Mom	Screw Terminal
Omron Electronics Inc-EMC Div V-15-2C26	SPST-NC	15 A 600 mA	1 mm	0.04 in	250 V	Round (Pin Plunger)	80 gf	100000 Cycles	0.047 in	1.2 mm	50000000 Cycles	0.579 in	14.7 mm	0.4 mm	0.016 "	400 gf	IP40	Chassis Mount	80 C	-25 °C	125 VDC	On-Mom	Quick Connect - 0.187" (4.7mm)
Omron Electronics Inc-EMC Div V-15G2-1B5-K	SPDT	15 A 100 mA	1.6 mm	0.062 in	250 V	Lever Straight	14 gf	100000 Cycles	0.157 in	4 mm	50000000 Cycles	0.6 in	15.2 mm	1.5 mm	0.06 "	125 gf	IP40	Chassis Mount	80 C	-25 °C	125 VDC	On-Mom	Screw Terminal
Omron Electronics Inc-EMC Div V-15G-2C26-K	SPST-NC	15 A 100 mA	1 mm	0.04 in	250 V	Round (Pin Plunger)	80 gf	100000 Cycles	0.047 in	1.2 mm	50000000 Cycles	0.579 in	14.7 mm	0.4 mm	0.016 "	400 gf	IP40	Chassis Mount	80 C	-25 °C	125 VDC	On-Mom	Quick Connect - 0.187" (4.7mm)
Omron Electronics Inc-EMC Div V-15G6-1C6-K	SPDT	15 A 100 mA	1.6 mm	0.062 in	250 V	Lever Roller	25 gf	100000 Cycles	0.157 in	4 mm	50000000 Cycles	0.815 in	20.7 mm	1.5 mm	0.06 "	400 gf	IP40	Chassis Mount	80 C	-25 °C	125 VDC	On-Mom	Quick Connect - 0.250" (6.3mm)
Omron Electronics Inc-EMC Div V-15-1E5	SPDT	15 A 600 mA	1 mm	0.04 in	250 V	Round (Pin Plunger)	50 gf	100000 Cycles	0.047 in	1.2 mm	50000000 Cycles	0.579 in	14.7 mm	0.4 mm	0.016 "	200 gf	IP40	Chassis Mount	80 C	-25 °C	125 VDC	On-Mom
Omron Electronics Inc-EMC Div V-15-1C5	SPDT	15 A 600 mA	1 mm	0.04 in	250 V	Round (Pin Plunger)	50 gf	100000 Cycles	0.047 in	1.2 mm	50000000 Cycles	0.579 in	14.7 mm	0.4 mm	0.016 "	200 gf	IP40	Chassis Mount	80 C	-25 °C	125 VDC	On-Mom	Quick Connect - 0.250" (6.3mm)
Omron Electronics Inc-EMC Div V-15-3C6-K	SPST-NO	15 A 600 mA	1 mm	0.04 in	250 V	Round (Pin Plunger)	80 gf	100000 Cycles	0.047 in	1.2 mm	50000000 Cycles	0.579 in	14.7 mm	0.4 mm	0.016 "	400 gf	IP40	Chassis Mount	80 C	-25 °C	125 VDC	Off-Mom	Quick Connect - 0.250" (6.3mm)
Omron Electronics Inc-EMC Div V-15-2A6	SPST-NC	15 A 600 mA	1 mm	0.04 in	250 V	Round (Pin Plunger)	80 gf	100000 Cycles	0.047 in	1.2 mm	50000000 Cycles	0.579 in	14.7 mm	0.4 mm	0.016 "	400 gf	IP40	Chassis Mount	80 C	-25 °C	125 VDC	On-Mom	Quick Connect Solder	0.187 in 4.7 mm
