09380122651 - 09380122651

09380122651

Active
HARTING Technology Group

HEAVY DUTY CONNECTOR, 6/6+PE POWER-SIGNAL, HAN-COM SERIES, INSERT, 13 CONTACTS, 24B, PLUG

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetProduct Change Notice EN+1
09380122651 - 09380122651

09380122651

Active
HARTING Technology Group

HEAVY DUTY CONNECTOR, 6/6+PE POWER-SIGNAL, HAN-COM SERIES, INSERT, 13 CONTACTS, 24B, PLUG

Deep-Dive with AI

DocumentsDatasheetProduct Change Notice EN+1

Technical Specifications

Parameters and characteristics for this part

Specification09380122651
ColorGray
Contact FinishSilver
Contact MaterialCopper
GenderMale
Housing MaterialPolycarbonate (PC)
Material Flammability RatingUL94 V-0
Number of Positions [custom]Ground
Number of Positions [custom]6
Number of Positions [custom]6
Operating Temperature [Max]125 °C
Operating Temperature [Min]-40 °C
Size24 B
Termination StyleScrew

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 159.95
10$ 146.78
25$ 141.13
50$ 136.43
NewarkEach 1$ 169.02
5$ 153.41
10$ 137.81
25$ 137.80

Description

General part information

09380122 Series

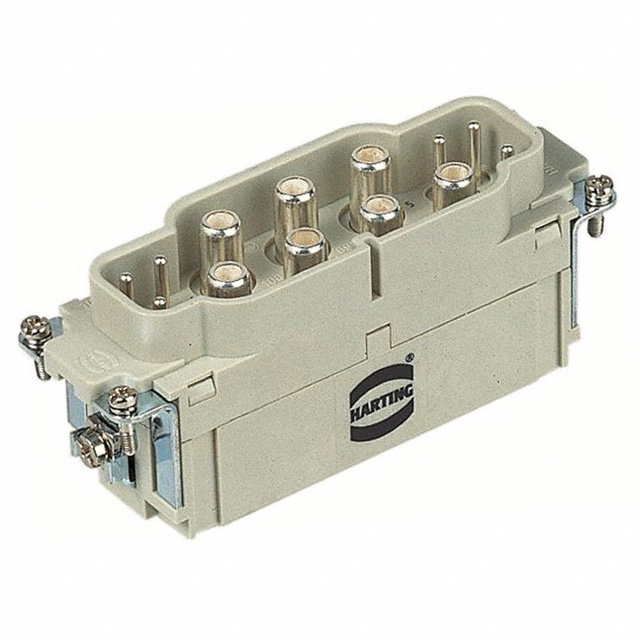

The 09380122651 is a light gray male Han K 6/6-position Insert with axial screw terminal, made of polycarbonate with silver-plated copper alloy contacts. It accepts 24 to 13AWG wire.
