15-006443

Active

Amphenol CONEC

CONN D-SUB PLUG 9P PNL MNT SLDR

Search across all available documentation for this part.

Active

Amphenol CONEC

CONN D-SUB PLUG 9P PNL MNT SLDR

Technical Specifications

Parameters and characteristics for this part

Specification	15-006443

Color	Black
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Features	Board Lock, Gasket
Flange Feature	Board Side (4-40), Mating Side, Female Screwlock (4-40)
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Panel Mount
Number of Positions	9
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Shell Material, Finish	Nickel Plated, Zinc Die Cast
Shell Size, Connector Layout [custom]	DE, E
Shell Size, Connector Layout [custom]	1
Termination	Solder
Voltage Rating	125 VDC

Part	Termination	Contact Material	Contact Finish Thickness	Connector Style	Material Flammability Rating	Number of Positions	Features	Contact Type	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Connector Type	Current Rating (Amps)	Mounting Type	Dielectric Material	Shell Material, Finish	Contact Finish	Number of Rows	Ingress Protection	Color	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Flange Feature	Wire Gauge
Amphenol CONEC 15-006443	Solder	Copper Alloy	Flash	D-Sub	UL94 V-0	9	Board Lock Gasket	Signal	DE E	1	Male Pins Plug	5 A	Panel Mount Through Hole	Polybutylene Terephthalate (PBT) Glass Filled	Nickel Plated Zinc Die Cast	Gold	2	IP67 - Dust Tight Waterproof	Black	125 VDC	-40 °C	105 ░C	Board Side (4-40) Mating Side Female Screwlock (4-40)
Amphenol CONEC 15-006413		Copper Alloy	Flash	D-Sub	UL94 V-0		Gasket	Signal	B DB	3	Receptacle Female Sockets	5 A		Polybutylene Terephthalate (PBT) Glass Filled	Nickel Plated Zinc Die Cast	Gold	2	IP67 - Dust Tight Waterproof	Black	125 VDC	-40 °C	105 ░C	Female Screwlock (4-40) Mating Side	20 AWG

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

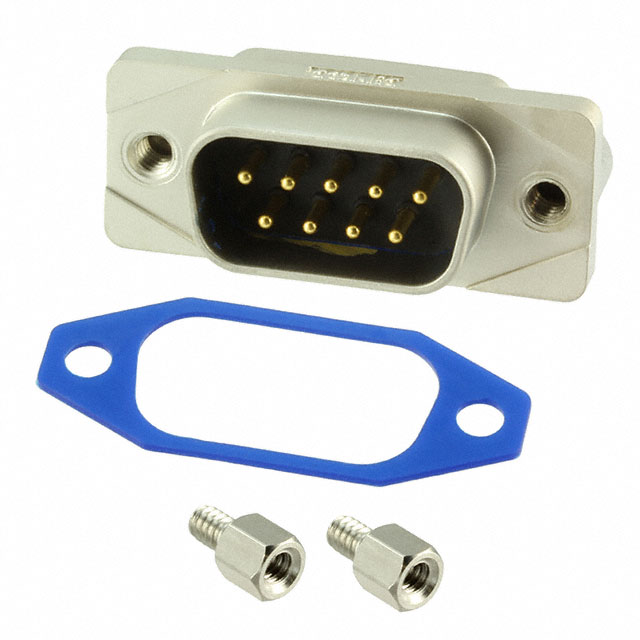

9 Position D-Sub Plug, Male Pins Connector
