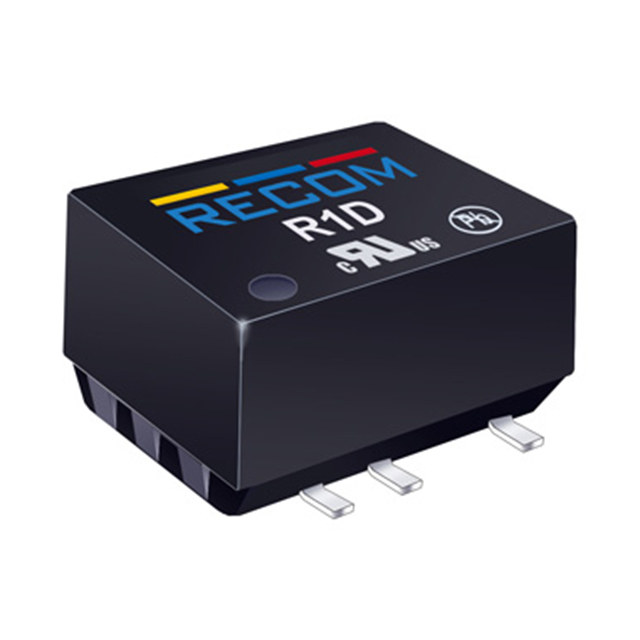

R1D10-1212-R

Active

RECOM Power

1W DC/DC-CONVERTER ECONOLINE SMD 1KV UNREG ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

RECOM Power

1W DC/DC-CONVERTER ECONOLINE SMD 1KV UNREG ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Part	Efficiency	Voltage - Output 2	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Min) [Min]	Features	Current - Output (Max) [Max]	Current - Output (Max) [Max]	Number of Outputs	Package / Case	Type	Applications	Voltage - Isolation	Voltage - Input (Max) [Max]	Voltage - Output 1	Mounting Type	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]
RECOM Power R1D10-1212-R	80 %	-12 V	100 °C	-40 °C	10.8 V	SCP	42 mA	42 mA	2	10-SMD Module	Isolated Module	ITE (Commercial)	1000 V	13.2 V	12 V	Surface Mount	10.7 mm	0.28 "	15.2 mm	7 mm	0.6 in	0.42 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 8.62
	Digi-Reel®	1	$ 8.62
	Tape & Reel (TR)	500	$ 6.74
Newark	Each (Supplied on Full Reel)	500	$ 6.97
		1000	$ 6.59
		1500	$ 6.11

General part information

Isolated Module DC DC Converter 2 Output 12V -12V 42mA, 42mA 10.8V - 13.2V Input
