09370101421

Active

HARTING Technology Group

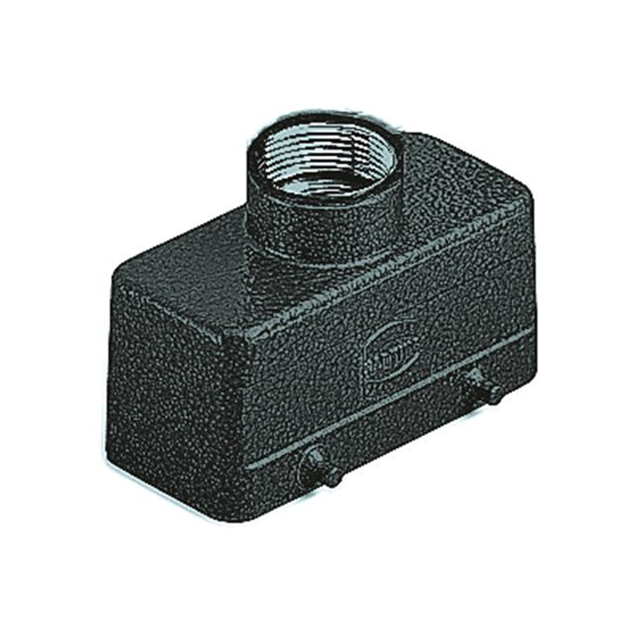

HAN M HOOD TOP ENTRY LC 4 PEGS PG 16 ROHS COMPLIANT: NA

Search across all available documentation for this part.

Active

HARTING Technology Group

HAN M HOOD TOP ENTRY LC 4 PEGS PG 16 ROHS COMPLIANT: NA

Technical Specifications

Parameters and characteristics for this part

Specification	09370101421

Connector Type	Hood
Housing Color	Black
Housing Finish	Powder Coated
Housing Material	Die Cast, Aluminum
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (2) on Base Bottom
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	10B
Size / Dimension [x]	72.6 mm
Size / Dimension [x]	2.858 "
Size / Dimension [y]	43 mm
Size / Dimension [y]	1.693 in
Size / Dimension [z]	1.772 in
Size / Dimension [z]	45 mm
Style	Top Entry
Thread Size	PG16

Part	Housing Finish	Housing Material	Size	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Housing Color	Style	Ingress Protection	Thread Size	Lock Location	Features	Size / Dimension [y]	Size / Dimension [z]
HARTING Technology Group 09370101421	Powder Coated	Aluminum Die Cast	10B	43 mm	72.6 mm	2.858 "	1.772 in	1.693 in	45 mm	Hood	125 °C	-40 °C	Black	Top Entry	IP65 - Dust Tight Water Resistant	PG16	Locking Clip (2) on Base Bottom
HARTING Technology Group 09370101731	Powder Coated	Aluminum Die Cast	10B		72.6 mm	2.858 "	1.866 "	1.693 in		Hood - Coupling	125 °C	-40 °C	Black	Bottom Entry	IP65 - Dust Tight Water Resistant	PG16	Locking Clip (2) on Hood Top	Cable to Cable	43 mm	47.4 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Hood Connector Top Entry PG16 10B IP65 - Dust Tight, Water Resistant
