6GK19010BP106AA0

Active

Siemens

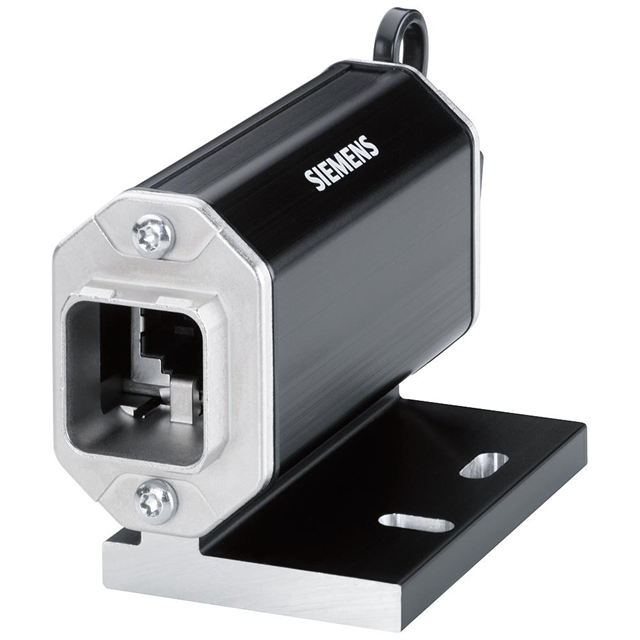

IE RJ45 COUPLER PRO

Search across all available documentation for this part.

Active

Siemens

IE RJ45 COUPLER PRO

Technical Specifications

Parameters and characteristics for this part

Specification	6GK19010BP106AA0

Convert From (Adapter End)	Jack, 8p8c (RJ45)
Convert To (Adapter End)	8p8c (RJ45), Jack
Ingress Protection	IP65 - Dust Tight, Water Resistant
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Ratings	Cat5
Shielding	Unshielded
Type	Coupler

Part	Color	Cable Type	Ingress Protection	1st Connector Mounting Type	1st Connector Shell Size - Insert	1st Connector Number of Positions Loaded	Usage	Shielding	1st Connector Orientation	2nd Connector Type	1st Connector Type	1st Connector Number of Positions	1st Connector Gender	Assembly Configuration	Convert From (Adapter End)	Simplex/Duplex	Type	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Convert To (Adapter End)	Shell Size - Insert	Number of Positions	Primary Material	Connector Type	Orientation	Applications	Shell Material	Ratings	Accessory Type	Number of Positions/Contacts	Style
Siemens 6GK19010DB406AA0	Green	Round	IP65 IP67	Free Hanging (In-Line)	M12	All	Industrial Environments	Unshielded	X	Wire Leads	Receptacle	8 positions	Female Sockets	Standard
Siemens 6GK19010RP100AA0	Blue														LC Receptacle	Duplex	Coupler	-20 C	70 °C	Panel Mount Snap-In	LC Receptacle
Siemens 6GK19010DB506AA0	Silver		IP65 IP67					Shielded										-40 °C	85 °C	Free Hanging (In-Line)		M12-8	8	Metal	Male Pins Plug	X	Automation Industrial	Metal
Siemens 6GK19010BP106AA0			IP65 - Dust Tight Water Resistant					Unshielded							Jack 8p8c (RJ45)		Coupler	-40 °C	70 °C		8p8c (RJ45) Jack								Cat5
Siemens 6GK19010AM000AA0																														Mounting Frame
Siemens 6GK19010BE100AA0	Green	Round Cable						Unshielded												Free Hanging (In-Line)					Jack to Cable						8p8c	Cat6a Industrial Environments IP20

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 220.72

General part information

Modular Coupler Connector Jack, 8p8c (RJ45) To Jack, 8p8c (RJ45) Cat5 Unshielded
