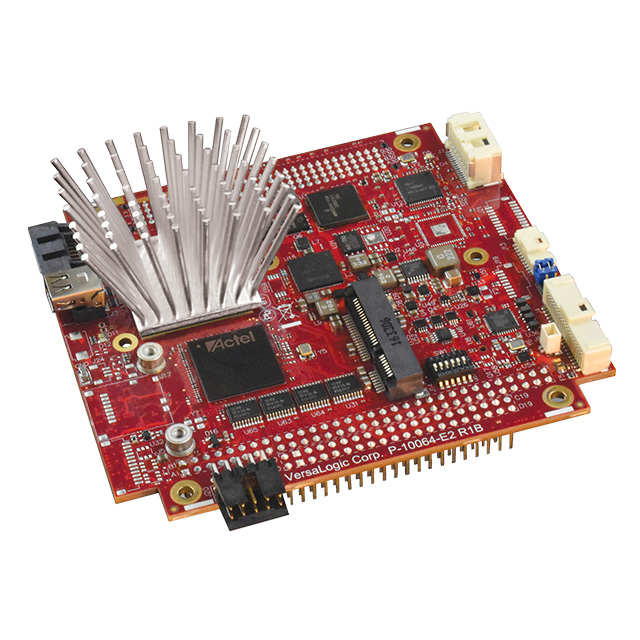

VL-EPM-39EBK

Active

VersaLogic Corporation

SBC 1.33GHZ 2 CORE 8GB/0GB RAM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet VersaLogic Releases New Low Cost Addition to its Range of Intel Bay Trail PC/104-Plus Computers

VL-EPM-39EBK

Active

VersaLogic Corporation

SBC 1.33GHZ 2 CORE 8GB/0GB RAM

Deep-Dive with AI

DocumentsDatasheet VersaLogic Releases New Low Cost Addition to its Range of Intel Bay Trail PC/104-Plus Computers

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	VL-EPM-39EBK

Cooling Type	Heat Sink
Core Processor	Intel Atom E3825
Digital I/O Lines	8
Ethernet	10 Mbps, 1000 Mbps, 100 Mbps
Expansion Site/Bus	SATA, mPCIe, I2C, PC/104-Plus
Form Factor	PC/104
Number of Cores	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Power (Watts)	5.3 W
RAM Capacity/Installed [custom]	8 GB
RAM Capacity/Installed [custom]	0 GB
RS-232 (422, 485)	2
Size / Dimension [x]	4.23 "
Size / Dimension [x]	107.44 mm
Size / Dimension [y]	3.77 in
Size / Dimension [y]	95.75 mm
Storage Interface	SATA 2.0, mSATA
USB	USB 2.0 (4)
Video Outputs	DP
Watchdog Timer	True

VL-EPU Series

Part	Operating Temperature [Max]	Operating Temperature [Min]	Core Processor	Digital I/O Lines	Power (Watts)	Speed	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Cooling Type	Form Factor	Ethernet	Analog Input:Output [custom]	Analog Input:Output [custom]	RAM Capacity/Installed	Storage Interface	Video Outputs	Number of Cores	RS-232 (422, 485)	Expansion Site/Bus	USB	Analog Input:Output [x]	Analog Input:Output [y]	Size / Dimension [x]	Size / Dimension [y]	Ethernet	RAM Capacity/Installed [custom]	RAM Capacity/Installed [custom]
VersaLogic Corporation VL-EBX-12PR	60 °C	0 °C	Intel Pentium M 745	32	25 W	1.8 GHz	203.2 mm	146.05 mm	8 in	5.75 in	Fan	EBX	2 10 Mbps 100 Mbps	8	0	0 GB 2 GB	ATA-4 ATA100 CompactFlash SATA2 (2)	LVDS VGA	1	4	PC/104-Plus	USB 2.0 (4)
VersaLogic Corporation VL-EPU-4562-SBP-08	60 °C	0 °C	Intel Core i5	24	15 W	2.7 GHz	4.92 in	3.74 in			Heat Plate		10 Mbps 100 Mbps 1000 Mbps			8 GB	microSD Mini PCIe/mSATA SATA	LVDS Mini Display Port	4	4		USB 2.0 (4) USB 3.0 (2)	8	4	94.99 mm	124.97 mm
VersaLogic Corporation VL-EPU-4562-WCP-32	70 °C	-20 C	Intel Core i7-6822EQ	24	22.2 W	2.8 GHz	94.99 mm	124.96 mm	3.74 "	4.92 in	Heat Plate	EPU	10 Mbps 100 Mbps 1000 Mbps			32 GB	Mini PCIe/mSATA SATA	LVDS Mini Display Port	4	4		USB 2.0 (4) USB 3.0 (2)	8	4
VersaLogic Corporation VL-EPU-4462-SAP-08	60 °C	0 °C	Intel Core i3	24	15 W		4.92 in	3.74 in			Heat Plate	COM Basic	10 Mbps 100 Mbps 1000 Mbps			8 GB	mSATA SATA 3.0 (2)	DP (2) LVDS	2	4	I2C mPCIe PCIe SATA SPI/SPX	USB 2.0 (4) USB 3.0 (2)	8	4	94.99 mm	124.97 mm
VersaLogic Corporation VL-EPU-4460-SCP-16	60 °C	0 °C	Intel Core i7-6600U	8	23.8 W	2.6 GHz	94.99 mm	94.99 mm	3.74 "	3.74 "	Heat Plate	COM Compact	10 Mbps 100 Mbps 1000 Mbps			16 GB	Mini PCIe/mSATA SATA	LVDS Mini Display Port	2	2		USB 2.0 (4) USB 3.0 (2)
VersaLogic Corporation VL-EPU-3310-EAP	85 °C	-40 °C	Intel Atom E3815		5.4 W	1.46 GHz	84 mm	55 mm	3.31 "	2.17 "	Heat Plate	EPU				2 GB	eMMC microSD Mini PCIe SATA	LVDS	1	2		USB 2.0 (4)					GbE
VersaLogic Corporation VL-EPU-4460-ECP-32	85 °C	-40 °C	Intel Core i7-6600U	8	23.8 W	2.6 GHz	94.99 mm	94.99 mm	3.74 "	3.74 "	Heat Plate	COM Compact	10 Mbps 100 Mbps 1000 Mbps			32 GB	Mini PCIe/mSATA SATA	LVDS Mini Display Port	2	2		USB 2.0 (4) USB 3.0 (2)
VersaLogic Corporation VL-EPU-4562-EBP-04	85 °C	-40 °C	Intel Core i5	24		2.7 GHz	4.92 in	3.74 in			Heat Plate		10 Mbps 100 Mbps 1000 Mbps				microSD Mini PCIe/mSATA SATA	LVDS Mini Display Port	4	4		USB 2.0 (4) USB 3.0 (2)	8	4	94.99 mm	124.97 mm
VersaLogic Corporation VL-EPM-39EBK	85 °C	-40 °C	Intel Atom E3825	8	5.3 W		95.75 mm	107.44 mm	3.77 in	4.23 "	Heat Sink	PC/104	10 Mbps 100 Mbps 1000 Mbps				mSATA SATA 2.0	DP	2	2	I2C mPCIe PC/104-Plus SATA	USB 2.0 (4)						8 GB	0 GB
VersaLogic Corporation VL-EPU-4562-SCP-08	60 °C	0 °C	Intel Core i7	24	15 W	2.8 GHz	4.92 in	3.74 in			Heat Plate		10 Mbps 100 Mbps 1000 Mbps			8 GB	microSD Mini PCIe/mSATA SATA	LVDS Mini Display Port	4	4		USB 2.0 (4) USB 3.0 (2)	8	4	94.99 mm	124.97 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 499.00

Description

General part information

VL-EPU Series

Single Board Computer 1.33GHz 2 Core 8GB/0GB RAM Intel Atom E3825

Documents

Technical documentation and resources
