TS06-667-43-R-260-G-SMT-TR

Active

CUI Devices

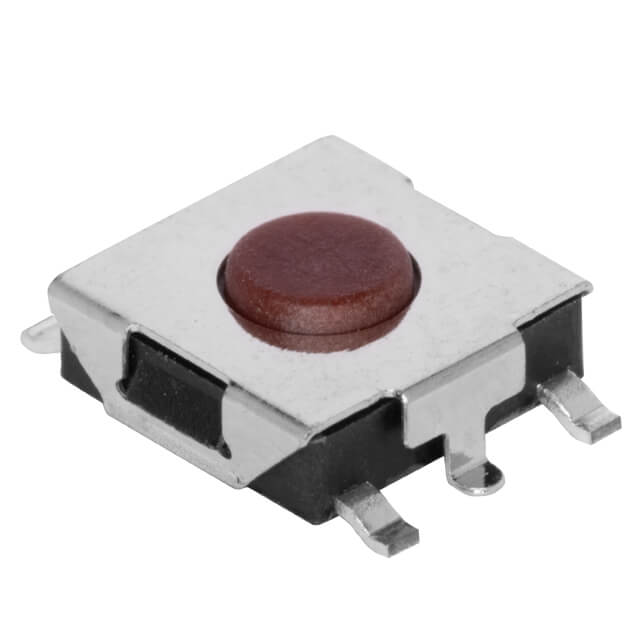

MICROSWITCH TACT; SPST-NO; POS: 2; 0.05A/12VDC; SMT; NONE; 2.6N

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TS06-667-43-R-260-G-SMT-TR

Active

CUI Devices

MICROSWITCH TACT; SPST-NO; POS: 2; 0.05A/12VDC; SMT; NONE; 2.6N

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TS06-667-43-R-260-G-SMT-TR

Actuator Height off PCB, Vertical [z]	4.3 mm
Actuator Material	Polyamide (PA FR52), Nylon FR52
Actuator Orientation	Top Actuated
Actuator Type	Standard
Circuit	SPST-NO
Contact Rating @ Voltage	0.05 A, 12 VDC
Illumination	Non-Illuminated
Mechanical Life	60000 Cycles
Mounting Type	Surface Mount
Operating Force	260 gf
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-30 ░C
Outline [x]	6.7 mm
Outline [y]	6 mm
Switch Function	Off-Mom
Switch Travel	0.25 mm
Termination Style	Gull Wing

TS06-667 Series

Part	Illumination	Termination Style	Switch Function	Switch Travel	Mechanical Life	Actuator Material	Outline [x]	Outline [y]	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Contact Rating @ Voltage	Actuator Height off PCB, Vertical [z]	Circuit	Actuator Orientation	Actuator Type	Operating Force	Actuator Height off PCB, Vertical
CUI Devices TS06-667-25-BK-160-G-SMT-TR	Non-Illuminated	Gull Wing	Off-Mom	0.25 mm	80000 Cycles	Polyamide (PA FR52) Nylon FR52	6.7 mm	6 mm	-30 ░C	80 C	Surface Mount	0.05 A 12 VDC	2.5 mm	SPST-NO	Top Actuated	Standard
CUI Devices TS06-667-30-WT-160-G-SMT-TR	Non-Illuminated	Gull Wing	Off-Mom	0.25 mm	80000 Cycles	Polyamide (PA FR52) Nylon FR52	6.7 mm	6 mm	-30 ░C	80 C	Surface Mount	0.05 A 12 VDC	3 mm	SPST-NO	Top Actuated	Standard
CUI Devices TS06-667-55-BK-160-G-SMT-TR	Non-Illuminated	Gull Wing	Off-Mom	0.25 mm	80000 Cycles	Polyamide (PA FR52) Nylon FR52	6.7 mm	6 mm	-30 ░C	80 C	Surface Mount	0.05 A 12 VDC	5.5 mm	SPST-NO	Top Actuated	Standard
CUI Devices TS06-667-25-WT-100-G-SMT-TR	Non-Illuminated	Gull Wing	Off-Mom	0.25 mm	100000 Cycles	Polyamide (PA FR52) Nylon FR52	6.7 mm	6 mm	-30 ░C	80 C	Surface Mount	0.05 A 12 VDC	2.5 mm	SPST-NO	Top Actuated	Standard	100 gf
CUI Devices TS06-667-34-BK-260-G-SMT-TR	Non-Illuminated	Gull Wing	Off-Mom	0.25 mm	60000 Cycles	Polyamide (PA FR52) Nylon FR52	6.7 mm	6 mm	-30 ░C	80 C	Surface Mount	0.05 A 12 VDC		SPST-NO	Top Actuated	Standard	260 gf	3.4 mm
CUI Devices TS06-667-30-BK-160-G-SMT-TR	Non-Illuminated	Gull Wing	Off-Mom	0.25 mm	80000 Cycles	Polyamide (PA FR52) Nylon FR52	6.7 mm	6 mm	-30 ░C	80 C	Surface Mount	0.05 A 12 VDC	3 mm	SPST-NO	Top Actuated	Standard
CUI Devices TS06-667-34-WT-100-G-SMT-TR	Non-Illuminated	Gull Wing	Off-Mom	0.25 mm	100000 Cycles	Polyamide (PA FR52) Nylon FR52	6.7 mm	6 mm	-30 ░C	80 C	Surface Mount	0.05 A 12 VDC		SPST-NO	Top Actuated	Standard	100 gf	3.4 mm
CUI Devices TS06-667-55-R-100-G-SMT-TR	Non-Illuminated	Gull Wing	Off-Mom	0.25 mm	100000 Cycles	Polyamide (PA FR52) Nylon FR52	6.7 mm	6 mm	-30 ░C	80 C	Surface Mount	0.05 A 12 VDC	5.5 mm	SPST-NO	Top Actuated	Standard	100 gf
CUI Devices TS06-667-30-BK-100-G-SMT-TR	Non-Illuminated	Gull Wing	Off-Mom	0.25 mm	100000 Cycles	Polyamide (PA FR52) Nylon FR52	6.7 mm	6 mm	-30 ░C	80 C	Surface Mount	0.05 A 12 VDC	3 mm	SPST-NO	Top Actuated	Standard	100 gf
CUI Devices TS06-667-43-R-260-G-SMT-TR	Non-Illuminated	Gull Wing	Off-Mom	0.25 mm	60000 Cycles	Polyamide (PA FR52) Nylon FR52	6.7 mm	6 mm	-30 ░C	80 C	Surface Mount	0.05 A 12 VDC	4.3 mm	SPST-NO	Top Actuated	Standard	260 gf
