633W-36 BLK

Active

E-Z-Hook

TEST LEAD BANANA TO GRABBER 36"

Search across all available documentation for this part.

Active

E-Z-Hook

TEST LEAD BANANA TO GRABBER 36"

Technical Specifications

Parameters and characteristics for this part

Specification	633W-36 BLK

1st Connector	Banana Plug, Single, Sheathed, Right Angle
2nd Connector	Mini Hook
Cable Length	36 in
Cable Length	914.4 mm
Configuration	Banana to Grabber, Hook
Contents	1 Lead, Black
Current Rating (Amps)	4 A
Material - Insulation	Poly-Vinyl Chloride (PVC)
Stacking Method	Non Stackable
Type	Patch Cord
Voltage - Rated	5 kV
Voltage - Rated	5 kV
Wire Gauge	18 AWG

Part	Cable Length	Cable Length	1st Connector	2nd Connector	Configuration	Contents	Current Rating (Amps)	Type	Material - Insulation	Stacking Method	Voltage - Rated	Voltage - Rated	Wire Gauge
E-Z-Hook 633W-36 BLK	36 in	914.4 mm	Banana Plug Single Sheathed Right Angle	Mini Hook	Banana to Grabber Hook	1 Lead Black	4 A	Patch Cord	Poly-Vinyl Chloride (PVC)	Non Stackable	5 kV	5 kV	18 AWG

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

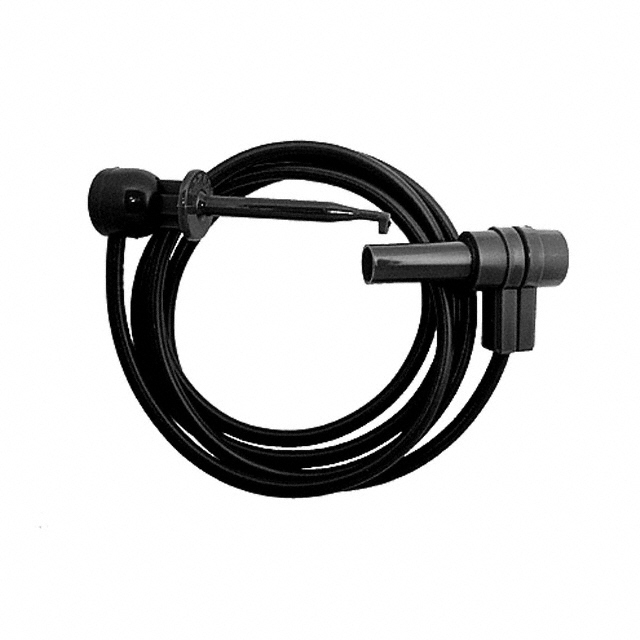

36.0" (914.40mm) Banana Plug, Single, Sheathed, Right Angle To Mini Hook Patch Cord 5000V (5kV)
