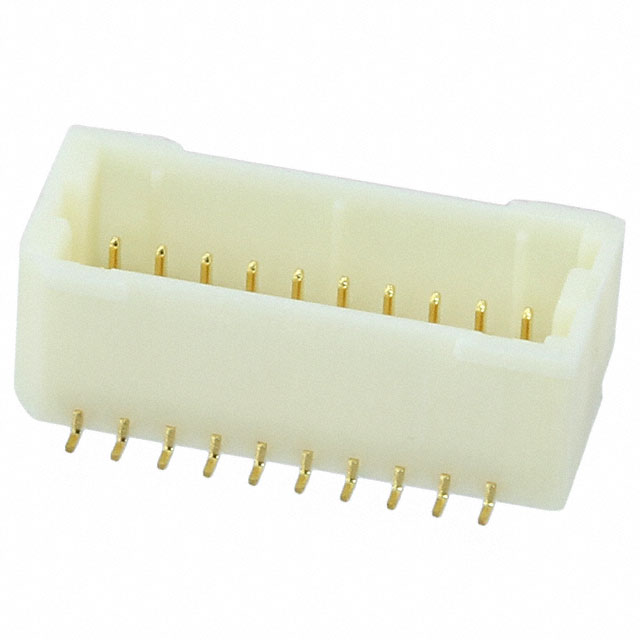

BM20B-SRDS-G-TFC

Active

JST Sales America Inc.

CONN HEADER SMD 20POS 1MM

Search across all available documentation for this part.

Active

JST Sales America Inc.

CONN HEADER SMD 20POS 1MM

Technical Specifications

Parameters and characteristics for this part

Specification	BM20B-SRDS-G-TFC

Connector Type	Header
Contact Finish - Mating	Gold
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Features	Pick and Place, Solder Retention
Insulation Color	Natural
Insulation Height	0.167 in
Insulation Height	4.25 mm
Insulation Material	Nylon, Polyamide (PA), Glass Filled
Mated Stacking Heights	6.3 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	20
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch - Mating	0.039 in
Pitch - Mating	1 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	50 V

Part	Contact Shape	Voltage Rating	Termination	Insulation Color	Mounting Type	Contact Material	Number of Positions	Connector Type	Number of Positions Loaded	Features	Shrouding	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height	Insulation Height	Pitch - Mating	Pitch - Mating	Fastening Type	Mated Stacking Heights	Contact Finish - Mating	Contact Type	Style	Insulation Material	Material Flammability Rating	Number of Rows
JST Sales America Inc. BM20B-SRDS-G-TFC	Square	50 V	Solder	Natural	Surface Mount	Phosphor Bronze	20	Header	All	Pick and Place Solder Retention	Shrouded - 4 Wall	-25 °C	85 °C	0.167 in	4.25 mm	0.039 in	1 mm	Push-Pull	6.3 mm	Gold	Male Pin	Board to Cable/Wire	Glass Filled Nylon Polyamide (PA)	UL94 V-0	2
JST Sales America Inc. BM20B-SRDS-G-TF	Square	50 V	Solder	Natural	Surface Mount	Phosphor Bronze	20	Header	All	Pick and Place Solder Retention	Shrouded - 4 Wall	-25 °C	85 °C	0.167 in	4.25 mm	0.039 in	1 mm	Push-Pull	6.3 mm	Gold	Male Pin	Board to Cable/Wire	Glass Filled Nylon Polyamide (PA)	UL94 V-0	2
JST Sales America Inc. BM20B-SRDS-A-G-TF	Square	50 V	Solder	Natural	Surface Mount	Phosphor Bronze	20	Header	All	Board Guide Pick and Place Solder Retention	Shrouded - 4 Wall	-25 °C	85 °C	0.167 in	4.25 mm	0.039 in	1 mm	Push-Pull	6.3 mm	Gold	Male Pin	Board to Cable/Wire	Glass Filled Nylon Polyamide (PA)	UL94 V-0	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Surface Mount 20 position 0.039" (1.00mm)
