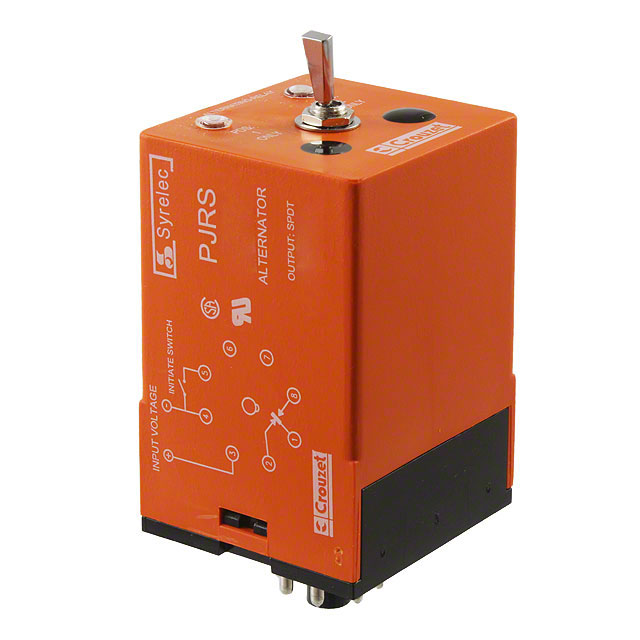

PJRS110A
ActiveCrouzet
RELAY IMPULSE SPDT 10A 110V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PJRS110A |
|---|---|
| Approval Agency | CSA, UL |
| Coil Type | Latching, Single Coil |
| Coil Voltage | 110 VAC/DC |
| Contact Form | SPDT (1 Form C) |
| Contact Material | Silver Cadmium Oxide (AgCdO) |
| Contact Rating (Current) | 10 A |
| Features | Lighted Indicator |
| Load - Max Switching | 80 W, 2200 VA |
| Mounting Type | Socketable |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -10 °C |
| Relay Type | Impulse |
| Switching Voltage | 250 VAC, 250 VDC |
| Termination Style | Plug In, 8 Pin (Octal) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 10 | $ 204.95 | |
Description
General part information
PJRS110 Series
Impulse Relay SPDT (1 Form C) 110VAC Coil Socketable
