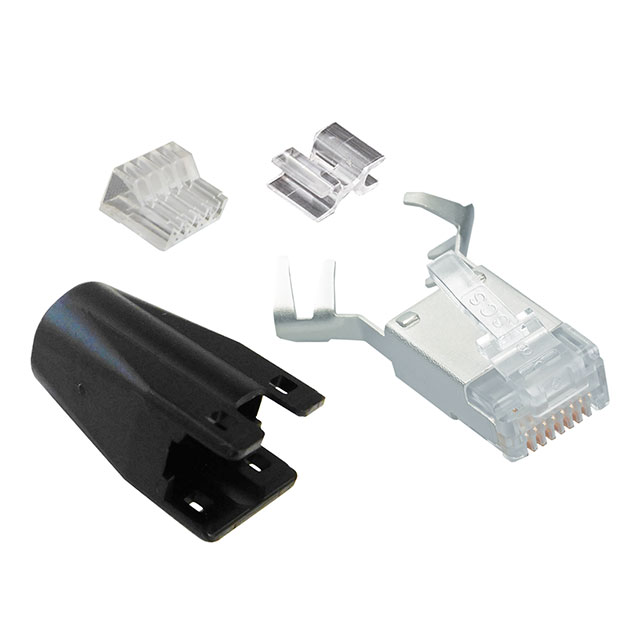

SS-39200-089

Active

BEL MAGNETIC SOLUTIONS

CONN MOD PLUG CAT6A 8P8C SHLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsIP20 Plug Assembly Instructions IP20 Modular Plug Brief +5

SS-39200-089

Active

BEL MAGNETIC SOLUTIONS

CONN MOD PLUG CAT6A 8P8C SHLD

Deep-Dive with AI

DocumentsIP20 Plug Assembly Instructions IP20 Modular Plug Brief +5

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SS-39200-089

Cable Type	Round Cable, Solid, Stranded Wires
Color	Black Boot, Translucent - Clear
Connector Type	Plug
Contact Finish	Gold
Contact Material	Copper Alloy
Features	Molded Boot, Cable Clamp
Housing Material	Polycarbonate (PC)
Length [x]	1.42 in
Length [x]	36.07 mm
Number of Positions/Contacts	8p8c (RJ45, Ethernet)
Ratings	Cat6a
Shield Material	Copper Alloy
Shielding	Shielded
Termination	IDC

SS-39200 Series

Crimpers / Crimping Tools Mod Hand Crimp Tool KIT 0.315-0.330

Part	Contact Material	Contact Finish	Number of Positions/Contacts	Length [x]	Length [x]	Ratings	Shield Material	Shielding	Color	Termination	Features	Cable Type	Housing Material	Connector Type	Voltage Rating	Current Rating (Amps)	Contact Finish Thickness	Contact Finish Thickness	Length	Length	Length	Wire Gauge [Max]	Wire Gauge [Min]
BEL MAGNETIC SOLUTIONS SS-39200-090	Copper Alloy	Gold	8p8c (RJ45 Ethernet)	1.42 in	36.07 mm	Cat6a	Copper Alloy	Shielded	Black Boot Translucent - Clear	IDC	Cable Clamp Molded Boot	Round Cable Solid Stranded Wires	Polycarbonate (PC)	Plug
BEL MAGNETIC SOLUTIONS SS-39200-044	Copper Alloy	Gold	8p8c (RJ45 Ethernet)	0.89 in	22.61 mm	Cat6	Copper Alloy	Shielded	Translucent - Clear	IDC		Round Cable Solid Wires	Polycarbonate (PC)	Plug	150 VDC	1.5 A	50 µin	1.27 µm
BEL MAGNETIC SOLUTIONS SS-39200-085	Copper Alloy	Gold	8p8c (RJ45 Ethernet)	1.42 in	36.07 mm	Cat6a	Copper Alloy	Shielded	Black Boot Translucent - Clear	IDC	Cable Clamp Molded Boot	Round Cable Solid Stranded Wires	Polycarbonate (PC)	Plug
BEL MAGNETIC SOLUTIONS SS-39200-023	Copper Alloy	Gold	8p8c (RJ45 Ethernet)	1.295 in	32.9 mm	Cat6a	Copper Alloy	Shielded	Translucent - Clear	Crimp	Cable Clamp	Round Cable Solid Stranded Wires	Polycarbonate (PC)	Plug	150 VDC	1.5 A	50 µin	1.27 µm
BEL MAGNETIC SOLUTIONS SS-39200-010	Copper Alloy	Gold	8p8c (RJ45 Ethernet)			Cat6	Copper Alloy	Shielded	Translucent - Clear	IDC	Cable Clamp	Round Cable Solid Stranded Wires	Polycarbonate (PC)	Plug	150 VDC	1.5 A	50 µin	1.27 µm	33.27 mm	1.31 in
BEL MAGNETIC SOLUTIONS SS-39200-089	Copper Alloy	Gold	8p8c (RJ45 Ethernet)	1.42 in	36.07 mm	Cat6a	Copper Alloy	Shielded	Black Boot Translucent - Clear	IDC	Cable Clamp Molded Boot	Round Cable Solid Stranded Wires	Polycarbonate (PC)	Plug
BEL MAGNETIC SOLUTIONS SS-39200-027	Copper Alloy	Gold	8p8c (RJ45 Ethernet)			Cat6a	Copper Alloy	Shielded	Black Boot Translucent - Clear	Crimp	Cable Clamp Molded Boot	Round Cable Solid Stranded Wires	Polycarbonate (PC)	Plug	150 VDC	1.5 A	50 µin	1.27 µm		44.45 mm	1.75 in	28 AWG	23 AWG
BEL MAGNETIC SOLUTIONS SS-39200-083	Copper Alloy	Gold	8p8c (RJ45 Ethernet)	1.42 in	36.07 mm	Cat6a	Copper Alloy	Shielded	Black Boot Translucent - Clear	IDC	Cable Clamp Molded Boot	Round Cable Solid Stranded Wires	Polycarbonate (PC)	Plug
BEL MAGNETIC SOLUTIONS SS-39200-024	Copper Alloy	Gold	8p8c (RJ45 Ethernet)			Cat6a	Copper Alloy	Shielded	Translucent - Clear	Crimp	Cable Clamp	Round Cable Solid Stranded Wires	Polycarbonate (PC)	Plug	150 VDC	1.5 A	50 µin	1.27 µm		44.4 mm	1.75 in
BEL MAGNETIC SOLUTIONS SS-39200-019	Copper Alloy	Gold	8p8c (RJ45 Ethernet)			Cat6	Copper Alloy	Shielded	Translucent - Clear	Crimp	Cable Clamp	Round Cable Solid Stranded Wires	Polycarbonate (PC)	Plug	150 VDC	1.5 A	50 µin	1.27 µm	33.27 mm	1.31 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	-	1	$ 5.53
		10	$ 5.02
		25	$ 4.76
		50	$ 4.65
		100	$ 4.43
		400	$ 3.87
		800	$ 3.43
		1200	$ 3.21
		2800	$ 2.99
Newark	Each	250	$ 3.84
		500	$ 3.68
		1000	$ 3.14

Description

General part information

SS-39200 Series

Crimpers / Crimping Tools Mod Hand Crimp Tool KIT 0.315-0.330
