APW199D-R-24V

Active

IDEC

LED PANEL MOUNT INDICATOR, PILOT LIGHT, RED, 24 V, 22 MM, 11 MA, IP65

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

APW199D-R-24V

Active

IDEC

LED PANEL MOUNT INDICATOR, PILOT LIGHT, RED, 24 V, 22 MM, 11 MA, IP65

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	APW199D-R-24V

Lamp Color	Red
Ratings	AC/DC
Type	LED
Voltage	24 V

APW199D Series

Part	Ratings	Lamp Color	Voltage	Type
IDEC APW199D-R-24V	AC/DC	Red	24 V	LED
IDEC APW199D-G-24V	AC/DC	Green	24 V	LED
IDEC APW199D-G-120V	AC	Green	120 V	LED

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 27.85
		10	$ 21.86
		100	$ 18.77
		500	$ 18.02
Newark	Each	1	$ 29.16
		5	$ 28.29
		10	$ 26.82
		25	$ 26.15
		50	$ 25.46
		100	$ 24.78

Description

General part information

APW199D Series

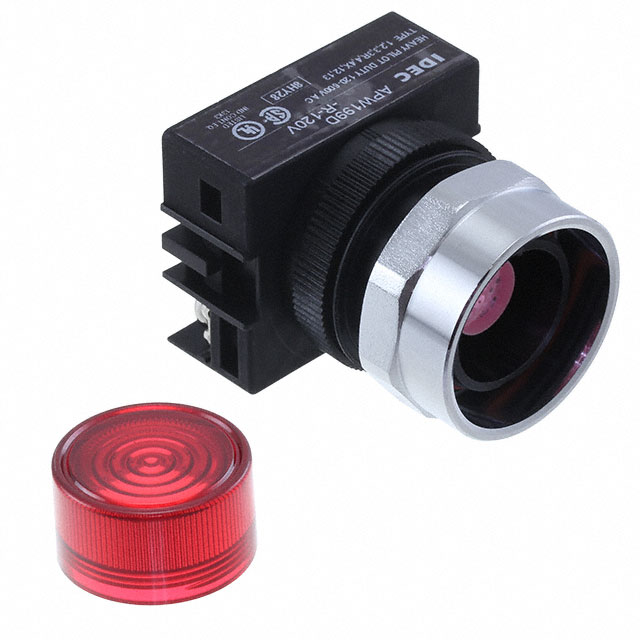

The APW199D-R-24V is a red panel mount LED Pilot Light with round flat standard lens and octagonal bezel. It is suitable for use with the switches and pilot devices. The operator shaft of each unit has a recess to identify in which direction to install the handle. The octagonal bezel screw into the operator and use the locking ring wrench (optional) for secure tightening and easy removal. Mushroom buttons screw onto the operator base.
