010832PW150

Active

Essentra Access Solutions

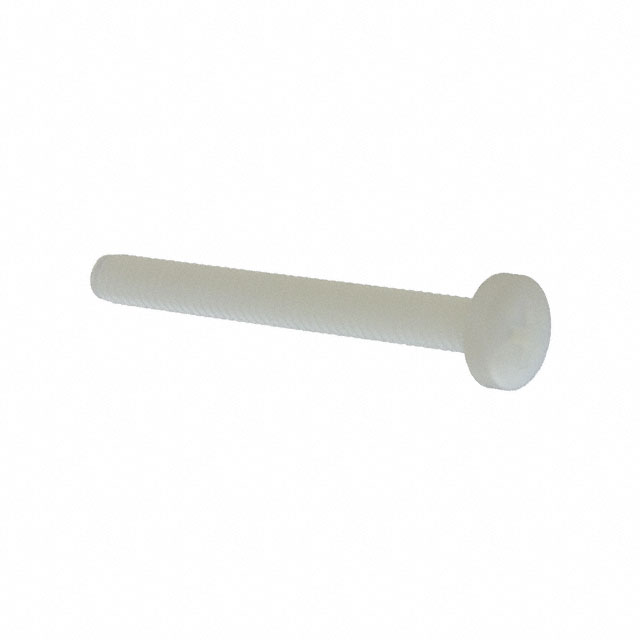

PAN PHILLIPS SCREW 8-32 THREAD 1

Search across all available documentation for this part.

Active

Essentra Access Solutions

PAN PHILLIPS SCREW 8-32 THREAD 1

Technical Specifications

Parameters and characteristics for this part

Part	Length - Below Head [x]	Length - Below Head [x]	Head Diameter [diameter]	Head Diameter [diameter]	Type	Screw Head Type	Material	Drive Type	Length - Overall [x]	Length - Overall [x]	Thread Size	Head Height [z]	Head Height [z]	Length - Below Head	Length - Below Head	Length - Below Head	Length - Below Head [custom]	Length - Below Head [custom]	Length - Overall	Length - Overall	Length - Below Head
Essentra Access Solutions 010832PW187	1.875 in	47.63 mm	0.314 in	7.98 mm	Machine Screw	Pan Head	Nylon	Phillips	50.42 mm	1.985 "	#8-32	0.11 in	2.79 mm
Essentra Access Solutions 010832PW062			0.314 in	7.98 mm	Machine Screw	Pan Head	Nylon	Phillips	18.67 mm	0.735 "	#8-32	0.11 in	2.79 mm	0.625 in	15.88 mm	0.625 in
Essentra Access Solutions 010832PW043			0.314 in	7.98 mm	Machine Screw	Pan Head	Nylon	Phillips			#8-32	0.11 in	2.79 mm				0.438 in	11.11 mm
Essentra Access Solutions 010832PW050			0.314 in	7.98 mm	Machine Screw	Pan Head	Nylon	Phillips			#8-32	0.11 in	2.79 mm		12.7 mm	0.5 in			15.49 mm	0.61 in	1/2
Essentra Access Solutions 010832PW150	1.5 in		0.314 in	7.98 mm	Machine Screw	Pan Head	Nylon	Phillips			#8-32	0.11 in	2.79 mm		38.1 mm				40.89 mm	1.61 in
Essentra Access Solutions 010832PW012			0.314 in	7.98 mm	Machine Screw	Pan Head	Nylon	Phillips			#8-32	0.11 in	2.79 mm						5.97 mm	0.235 in
Essentra Access Solutions 010832PW075			0.314 in	7.98 mm	Machine Screw	Pan Head	Nylon	Phillips	21.84 mm	0.86 "	#8-32	0.11 in	2.79 mm	0.75 "	19.05 mm	0.75 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

#8-32 Pan Head Machine Screw Phillips Drive Nylon
