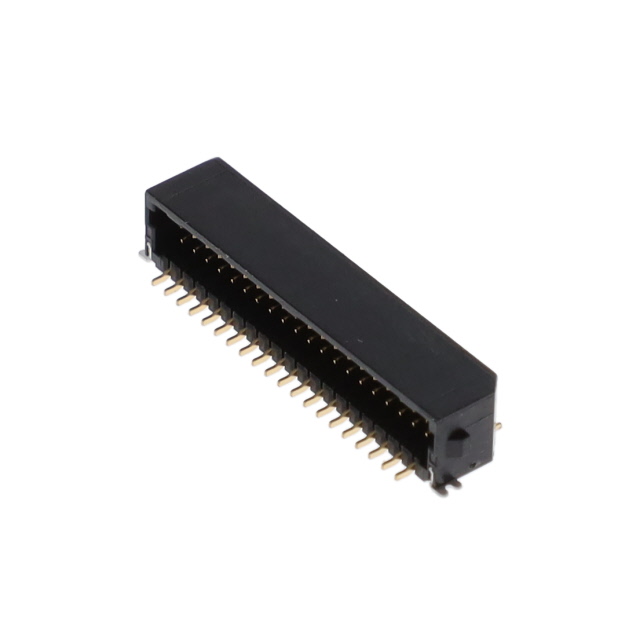

G846A40120T1HR

Active

Amphenol ICC (Commercial Products)

WIRE TO BOARD 1.0MM PITCH R/A,SM

Search across all available documentation for this part.

Active

Amphenol ICC (Commercial Products)

WIRE TO BOARD 1.0MM PITCH R/A,SM

Technical Specifications

Parameters and characteristics for this part

Specification	G846A40120T1HR

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	15 µin
Contact Finish Thickness - Mating	0.38 µm
Contact Finish Thickness - Post	15 µin
Contact Finish Thickness - Post	0.38 µm
Contact Material	Phosphor Bronze
Contact Shape	Rectangular
Contact Type	Male Pin
Current Rating (Amps)	Varies by Wire Gauge
Fastening Type	Locking Ramp
Features	Solder Retention
Insulation Color	Black
Insulation Height	4.45 mm
Insulation Height	0.175 in
Insulation Material	Polyamide (PA9T), Nylon 9T
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Positions	40
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-45 °C
Pitch - Mating	0.039 in
Pitch - Mating	1 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	50 VAC

Part	Termination	Number of Rows	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Mating	Contact Type	Insulation Height	Insulation Height	Voltage Rating	Number of Positions Loaded	Style	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Color	Contact Material	Contact Finish - Post	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Fastening Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Material	Shrouding	Contact Shape	Number of Positions	Features	Connector Type	Current Rating (Amps)
Amphenol ICC (Commercial Products) G846A40120T1HR	Solder	2	Surface Mount Right Angle	-45 °C	105 ░C	Gold	Male Pin	4.45 mm	0.175 in	50 VAC	All	Board to Cable/Wire	15 µin	0.38 µm	Black	Phosphor Bronze	Gold	0.039 in	1 mm	UL94 V-0	Locking Ramp	15 µin	0.38 µm	Nylon 9T Polyamide (PA9T)	Shrouded - 4 Wall	Rectangular	40	Solder Retention	Header	Varies by Wire Gauge

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Surface Mount, Right Angle 40 position 0.039" (1.00mm)
