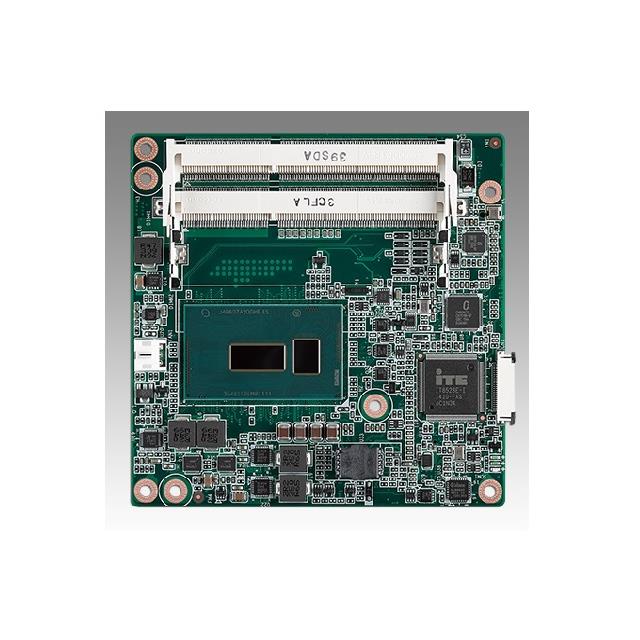

SOM-6896CR-S9A1E

Active

Advantech Corp

SBC 1.9GHZ 2 CORE 16GB/0GB RAM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SOM-6896CR-S9A1E

Active

Advantech Corp

SBC 1.9GHZ 2 CORE 16GB/0GB RAM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SOM-6896CR-S9A1E

Cooling Type	Fan
Core Processor	Intel Celeron 3765U
Digital I/O Lines	8
Ethernet	10 Mbps, 1000 Mbps, 100 Mbps
Expansion Site/Bus	PCIe, SMBus, LPC, I2C
Form Factor	COM Express R2.1 Compact Module, Type 6
Number of Cores	2
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	0 °C
RAM Capacity/Installed	16 GB, 0 GB
Size / Dimension [x]	3.74 "
Size / Dimension [x]	94.99 mm
Size / Dimension [y]	3.74 "
Size / Dimension [y]	94.99 mm
Speed	1.9 GHz
Storage Interface	SATA 3.0 (4)
USB	USB 3.0 (2), USB 2.0 (8)
Video Outputs	LVDS, HDMI, DD, VGA, DP, DVI
Watchdog Timer	True

SOM-6896 Series

Part	Core Processor	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Ethernet	Form Factor	Expansion Site/Bus	Storage Interface	Number of Cores	Speed	USB	Video Outputs	Cooling Type	RAM Capacity/Installed	Operating Temperature [Max]	Operating Temperature [Min]	Digital I/O Lines
Advantech Corp SOM-6896C3Z2-U1A1E	Intel Core i3-5010U	0.55 in	95 mm	3.74 "	14 mm	10 Mbps 100 Mbps 1000 Mbps
Advantech Corp SOM-6896C5Z2-S8A1E	Intel Core i5-5350U	0.55 in	95 mm	3.74 "	14 mm	10 Mbps 100 Mbps 1000 Mbps
Advantech Corp SOM-6896C3Z-U1A1E	Intel Core i3-5010U	0.55 in	95 mm	3.74 "	14 mm	10 Mbps 100 Mbps 1000 Mbps
Advantech Corp SOM-6896CR-S9A1E	Intel Celeron 3765U	3.74 "	94.99 mm	3.74 "	94.99 mm	10 Mbps 100 Mbps 1000 Mbps	COM Express R2.1 Compact Module Type 6	I2C LPC PCIe SMBus	SATA 3.0 (4)	2	1.9 GHz	USB 2.0 (8) USB 3.0 (2)	DD DP DVI HDMI LVDS VGA	Fan	0 GB 16 GB	60 °C	0 °C	8
Advantech Corp SOM-6896C3Z2-U1A1E	Intel Core i3-5010U	0.55 in	95 mm	3.74 "	14 mm	10 Mbps 100 Mbps 1000 Mbps
Advantech Corp SOM-6896C5Z-S8A1E	Intel Core i5-5350U	0.55 in	95 mm	3.74 "	14 mm	10 Mbps 100 Mbps 1000 Mbps
Advantech Corp SOM-6896C7Z-U2A1E	Intel Core i7-5650U	0.55 in	95 mm	3.74 "	14 mm	10 Mbps 100 Mbps 1000 Mbps
Advantech Corp SOM-6896CRZ2-S9A1E	Intel Celeron 3765U	0.55 in	95 mm	3.74 "	14 mm	10 Mbps 100 Mbps 1000 Mbps
Advantech Corp SOM-6896C3-U1A1E	Intel Core i3-5010U	3.74 "	94.99 mm	3.74 "	94.99 mm	10 Mbps 100 Mbps 1000 Mbps	COM Express R2.1 Compact Module Type 6	I2C LPC PCIe SMBus	SATA 3.0 (4)	2	2.1 GHz	USB 2.0 (8) USB 3.0 (2)	DD DP DVI HDMI LVDS VGA	Fan	0 GB 16 GB	60 °C	0 °C	8
Advantech Corp SOM-6896C7Z2-U2A1E	Intel Core i7-5650U	0.55 in	95 mm	3.74 "	14 mm	10 Mbps 100 Mbps 1000 Mbps

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 381.25

Description

General part information

SOM-6896 Series

Single Board Computer 1.9GHz 2 Core 16GB/0GB RAM Intel Celeron 3765U
