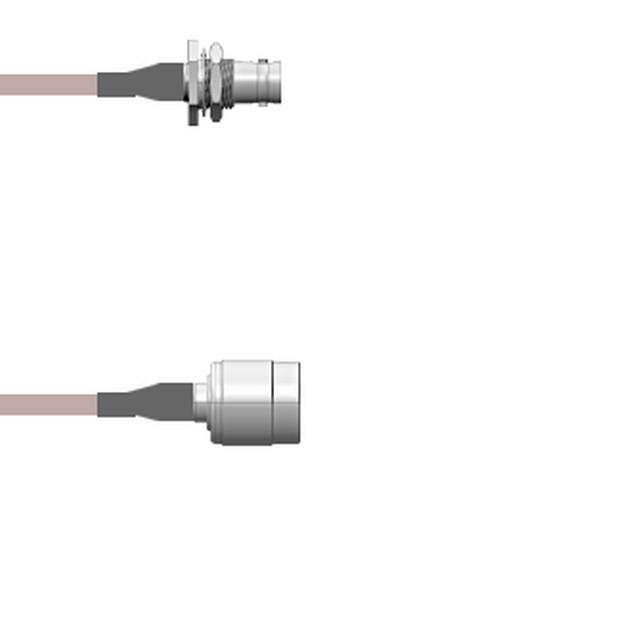

Q-010510001009i

Active

Amphenol Custom Cable

CBL ASSY BNC-TNC JACK-PLUG 9"

Deep-Dive with AI

Search across all available documentation for this part.

Q-010510001009i

Active

Amphenol Custom Cable

CBL ASSY BNC-TNC JACK-PLUG 9"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-010510001009i

1st Connector	BNC Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	TNC Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-178
Color	Copper
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	9 "
Length	228.6 mm
Overall Impedance	50 Ohms
Style	BNC to TNC

Q-010510 Series

Part	Style	Length	Length	Features	Frequency - Max [Max]	1st Connector Mounting Feature	1st Connector Mounting Type	2nd Contact Gender	2nd Connector	Overall Impedance	1st Connector	1st Contact Gender	2nd Connector Mounting Type	Color	Cable Type	Length	Length [x]	Length [x]
Amphenol Custom Cable Q-010510001036i	BNC to TNC	91.44 cm	36 in	Shielded	4 GHz	Bulkhead - Front Side Nut	Panel Mount	Male	TNC Plug	50 Ohms	BNC Jack	Female	Free Hanging (In-Line)	Copper	RG-178
Amphenol Custom Cable Q-010510001.75M	BNC to TNC	750 mm	29.53 "	Shielded	4 GHz	Bulkhead - Front Side Nut	Panel Mount	Male	TNC Plug	50 Ohms	BNC Jack	Female	Free Hanging (In-Line)	Copper	RG-178
Amphenol Custom Cable Q-010510001048i	BNC to TNC	1200 mm	48 in	Shielded	4 GHz	Bulkhead - Front Side Nut	Panel Mount	Male	TNC Plug	50 Ohms	BNC Jack	Female	Free Hanging (In-Line)	Copper	RG-178	4 ft
Amphenol Custom Cable Q-010510001003M	BNC to TNC	3 m	118.1 in	Shielded	4 GHz	Bulkhead - Front Side Nut	Panel Mount	Male	TNC Plug	50 Ohms	BNC Jack	Female	Free Hanging (In-Line)	Copper	RG-178	9.8 '
Amphenol Custom Cable Q-010510001009i	BNC to TNC	228.6 mm	9 "	Shielded	4 GHz	Bulkhead - Front Side Nut	Panel Mount	Male	TNC Plug	50 Ohms	BNC Jack	Female	Free Hanging (In-Line)	Copper	RG-178
Amphenol Custom Cable Q-010510001006i	BNC to TNC	152.4 mm	6 in	Shielded	4 GHz	Bulkhead - Front Side Nut	Panel Mount	Male	TNC Plug	50 Ohms	BNC Jack	Female	Free Hanging (In-Line)	Copper	RG-178
Amphenol Custom Cable Q-0105100011.5M	BNC to TNC	1.5 m	59.1 in	Shielded	4 GHz	Bulkhead - Front Side Nut	Panel Mount	Male	TNC Plug	50 Ohms	BNC Jack	Female	Free Hanging (In-Line)	Copper	RG-178	4.9 ft
Amphenol Custom Cable Q-010510001084i	BNC to TNC	2.1 m	84 in	Shielded	4 GHz	Bulkhead - Front Side Nut	Panel Mount	Male	TNC Plug	50 Ohms	BNC Jack	Female	Free Hanging (In-Line)	Copper	RG-178	7 ft
Amphenol Custom Cable Q-0105100012.5M	BNC to TNC	2.5 m	98.4 in	Shielded	4 GHz	Bulkhead - Front Side Nut	Panel Mount	Male	TNC Plug	50 Ohms	BNC Jack	Female	Free Hanging (In-Line)	Copper	RG-178	8.2 '
Amphenol Custom Cable Q-010510001018i	BNC to TNC			Shielded	4 GHz	Bulkhead - Front Side Nut	Panel Mount	Male	TNC Plug	50 Ohms	BNC Jack	Female	Free Hanging (In-Line)	Copper	RG-178		457.2 mm	457.2 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 58.32
		25	$ 57.19
		50	$ 56.06
		100	$ 54.93
		250	$ 53.79

Description

General part information

Q-010510 Series

Cable Assembly Coaxial BNC to TNC RG-178 9.000" (228.60mm)

Documents

Technical documentation and resources

No documents available
