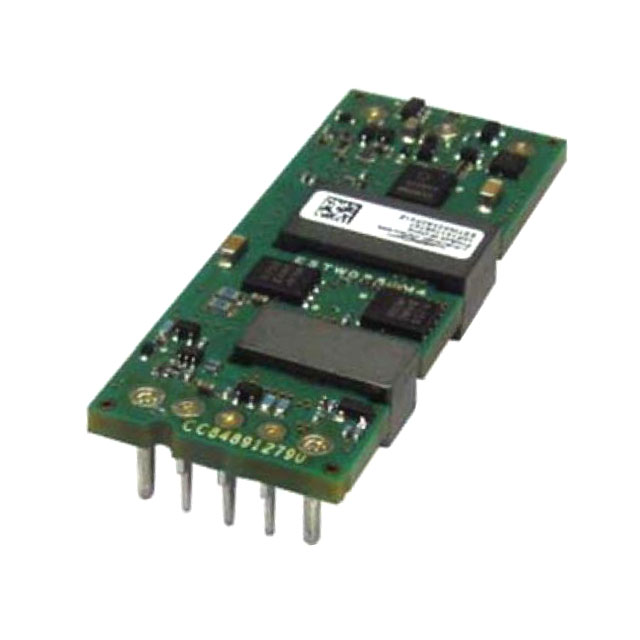

ESTW024A0A41Z

Active

OmniOn Power™

DC DC CONVERTER 5V 120W

Search across all available documentation for this part.

Active

OmniOn Power™

DC DC CONVERTER 5V 120W

Technical Specifications

Parameters and characteristics for this part

Specification	ESTW024A0A41Z

Applications	ITE (Commercial)
Control Features	Active Low, Enable
Current - Output (Max) [Max]	24 A
Efficiency	91.5 %
Features	OCP, UVLO, OTP, Remote On/Off, SCP, OVP
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	8-DIP Module, 1/8 Brick
Power (Watts)	120 W
Size / Dimension [x]	58.4 mm
Size / Dimension [x]	2.3 in
Size / Dimension [y]	22.9 mm
Size / Dimension [y]	0.9 "
Size / Dimension [z]	8.9 mm
Size / Dimension [z]	0.35 "
Type	Isolated Module
Voltage - Input (Max) [Max]	75 V
Voltage - Input (Min) [Min]	36 V
Voltage - Isolation	2250 VDC
Voltage - Output 1	5 V

Part	Type	Current - Output (Max) [Max]	Number of Outputs	Mounting Type	Features	Power (Watts)	Voltage - Isolation	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Max) [Max]	Applications	Efficiency	Control Features	Voltage - Output 1	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Package / Case	Voltage - Input (Min) [Min]
OmniOn Power™ ESTW024A0A41Z	Isolated Module	24 A	1	Through Hole	OCP OTP OVP Remote On/Off SCP UVLO	120 W	2250 VDC	85 °C	-40 °C	75 V	ITE (Commercial)	91.5 %	Active Low Enable	5 V	58.4 mm	22.9 mm	8.9 mm	2.3 in	0.9 "	0.35 "	1/8 Brick 8-DIP Module	36 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	288	$ 33.17

General part information

Isolated Module DC DC Converter 1 Output 5V 24A 36V - 75V Input
