STR-A6069H

Active

Sanken Electric USA Inc.

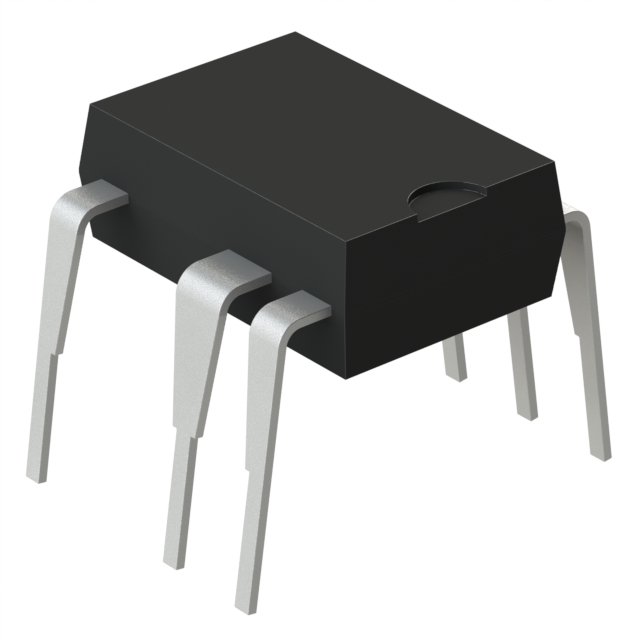

IC OFFLINE SWITCH FLYBACK 8DIP

Search across all available documentation for this part.

Active

Sanken Electric USA Inc.

IC OFFLINE SWITCH FLYBACK 8DIP

Technical Specifications

Parameters and characteristics for this part

Specification	STR-A6069H

Duty Cycle	83 %
Fault Protection	Over Temperature, Over Load, Current Limiting, Over Voltage
Frequency - Switching	100 kHz
Internal Switch(s)	True
Mounting Type	Through Hole
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-20 °C
Output Isolation	Isolated
Package / Case	7.62 mm
Package / Case	0.3 in, 7 Leads
Package / Case	8-DIP
Power (Watts)	30 W
Supplier Device Package	8-DIP
Topology	Flyback
Voltage - Breakdown	700 V
Voltage - Start Up	15.3 V
Voltage - Supply (Vcc/Vdd) [Max]	32 V
Voltage - Supply (Vcc/Vdd) [Min]	8.1 V

Part	Mounting Type	Voltage - Breakdown	Operating Temperature [Min]	Operating Temperature [Max]	Topology	Voltage - Supply (Vcc/Vdd) [Min]	Voltage - Supply (Vcc/Vdd) [Max]	Frequency - Switching	Package / Case	Package / Case	Package / Case	Power (Watts)	Supplier Device Package	Fault Protection	Internal Switch(s)	Duty Cycle	Voltage - Start Up	Output Isolation
Sanken Electric USA Inc. STR-A6069HD	Through Hole	700 V	-20 °C	125 °C	Flyback	8.1 V	32 V	100 kHz	7.62 mm	0.3 in 7 Leads	8-DIP	30 W	8-DIP	Current Limiting Over Load Over Temperature Over Voltage		83 %	15.3 V	Isolated
Sanken Electric USA Inc. STR-A6069H	Through Hole	700 V	-20 °C	125 °C	Flyback	8.1 V	32 V	100 kHz	7.62 mm	0.3 in 7 Leads	8-DIP	30 W	8-DIP	Current Limiting Over Load Over Temperature Over Voltage		83 %	15.3 V	Isolated
