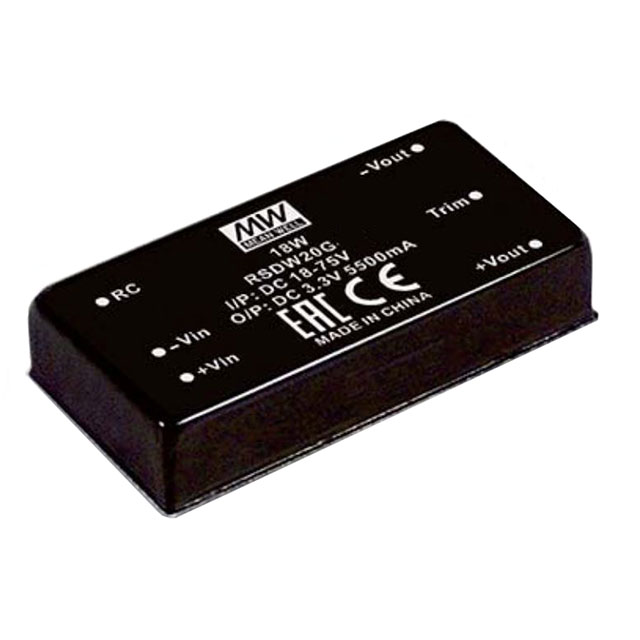

RSDW20G-03

Active

MEAN WELL USA Inc.

DC/DC CONVERTER

Search across all available documentation for this part.

Active

MEAN WELL USA Inc.

DC/DC CONVERTER

Technical Specifications

Parameters and characteristics for this part

Specification	RSDW20G-03

Approval Agency	UKCA, CE, EAC
Current - Output (Max) [Max]	5.5 A
Efficiency	88 %
Features	Remote On/Off, Adjustable Output
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	6-DIP Module
Power (Watts)	18 W
Size / Dimension [x]	2 in
Size / Dimension [x]	50.8 mm
Size / Dimension [y]	25.4 mm
Size / Dimension [y]	25.4 mm
Size / Dimension [z]	0.4 "
Size / Dimension [z]	10.2 mm
Type	Isolated Module
Voltage - Input (Max) [Max]	75 V
Voltage - Input (Min) [Min]	18 V
Voltage - Isolation	1.5 kV
Voltage - Output 1	3.3 V

Part	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]	Features	Number of Outputs	Efficiency	Power (Watts)	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output (Max) [Max]	Voltage - Output 1	Package / Case	Approval Agency	Type	Voltage - Isolation	Mounting Type
MEAN WELL USA Inc. RSDW20G-12	18 V	75 V	Adjustable Output Remote On/Off	1	90 %	20 W	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	85 °C	-40 °C	1.67 A	12 V	6-DIP Module	CE EAC UKCA	Isolated Module	1.5 kV	Through Hole
MEAN WELL USA Inc. RSDW20G-03	18 V	75 V	Adjustable Output Remote On/Off	1	88 %	18 W	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	85 °C	-40 °C	5.5 A	3.3 V	6-DIP Module	CE EAC UKCA	Isolated Module	1.5 kV	Through Hole
MEAN WELL USA Inc. RSDW20G-15	18 V	75 V	Adjustable Output Remote On/Off	1	90 %	20 W	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	85 °C	-40 °C	1.33 A	15 V	6-DIP Module	CE EAC UKCA	Isolated Module	1.5 kV	Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	300	$ 33.28

General part information

Isolated Module DC DC Converter 1 Output 3.3V 5.5A 18V - 75V Input
