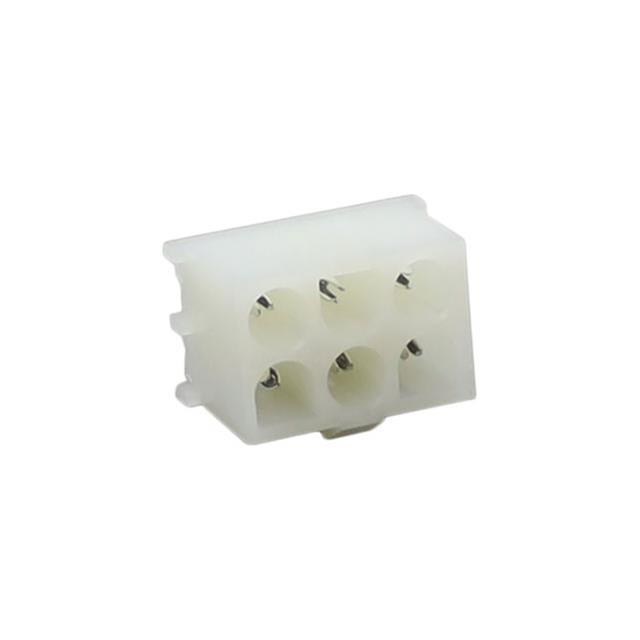

DME-06-S2-SQ

Active

Adam Tech

PCB MOUNT PIN HEADER (W/OUT POLA

Search across all available documentation for this part.

Active

Adam Tech

PCB MOUNT PIN HEADER (W/OUT POLA

Technical Specifications

Parameters and characteristics for this part

Specification	DME-06-S2-SQ

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Post	0.157 in
Contact Length - Post	4 mm
Contact Material	Phosphor Bronze
Contact Shape	Circular
Contact Type	Male Pin
Current Rating (Amps)	9 A
Fastening Type	Locking Ramp
Insulation Color	Natural
Insulation Height	0.581 in
Insulation Height	14.76 mm, 14.75 mm
Insulation Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-2
Mounting Type	Through Hole
Number of Positions	6
Number of Positions Loaded	All
Number of Rows	3
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	6.35 mm
Pitch - Mating	0.25 in
Row Spacing - Mating	0.25 in
Row Spacing - Mating	6.35 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

Part	Features	Number of Positions	Row Spacing - Mating	Row Spacing - Mating	Number of Positions Loaded	Insulation Height	Insulation Height	Connector Type	Number of Rows	Fastening Type	Contact Type	Material Flammability Rating	Current Rating (Amps)	Insulation Color	Applications	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Contact Shape	Pitch - Mating	Pitch - Mating	Voltage Rating	Contact Length - Post	Contact Length - Post	Mounting Type	Insulation Material	Style	Contact Material	Contact Finish - Post	Shrouding
Adam Tech DME-06-S-SQ-V0	Board Guide	6	0.25 in	6.35 mm	All	0.55 in	13.97 mm	Receptacle	3	Locking Ramp	Female Socket	UL94 V-0	13 A	Natural	General Purpose	Solder	105 ░C	-55 °C	Circular	6.35 mm	0.25 in	600 VAC	0.177 in	4.5 mm	Through Hole	Polyamide (PA66) Nylon 6/6
Adam Tech DME-06-S2-SQ		6	0.25 in	6.35 mm	All	0.581 in	14.75 mm 14.76 mm	Header	3	Locking Ramp	Male Pin	UL94 V-2	9 A	Natural		Solder	105 ░C	-40 °C	Circular	6.35 mm	0.25 in		0.157 in	4 mm	Through Hole	Polyamide (PA66) Nylon 6/6	Board to Cable/Wire	Phosphor Bronze	Tin	Shrouded - 4 Wall
