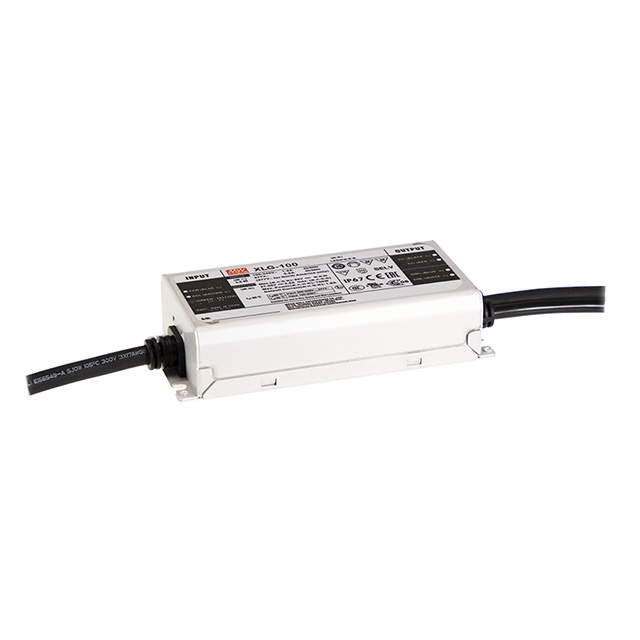

XLG-100-12-A
ActiveMEAN WELL USA Inc.
100W CONSTANT POWER MODE LED DRI
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
XLG-100-12-A
ActiveMEAN WELL USA Inc.
100W CONSTANT POWER MODE LED DRI
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | XLG-100-12-A |
|---|---|
| Approval Agency | CCC, CB, cURus, EAC, ENEC, RCM, CE |
| Current - Output (Max) [Max] | 8 A |
| Efficiency | 92 % |
| Features | OTP, SCP, OVP, OCP |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 90 °C |
| Operating Temperature [Min] | -40 °C |
| Power (Watts) | 96 W |
| Ratings | IP67 |
| Size / Dimension [x] | 125 mm |
| Size / Dimension [x] | 4.92 in |
| Size / Dimension [y] | 2.48 in |
| Size / Dimension [y] | 63 mm |
| Size / Dimension [z] | 32 mm |
| Size / Dimension [z] | 1.26 in |
| Termination Style | Wire Leads |
| Topology | AC DC Converter |
| Type | Constant Current |
| Voltage - Input (Max) [Max] | 305 VAC |
| Voltage - Input (Min) [Min] | 100 VAC |
| Voltage - Isolation | 4.2 kV |
| Voltage - Output | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 34.62 | |
| 5 | $ 32.10 | |||
| 10 | $ 31.07 | |||
| 25 | $ 29.76 | |||
Description
General part information
XLG-100 Series
8A 12V Constant Current LED Driver AC DC Converter Topology 1 Output
