307-016-520-201

Active

EDAC Inc.

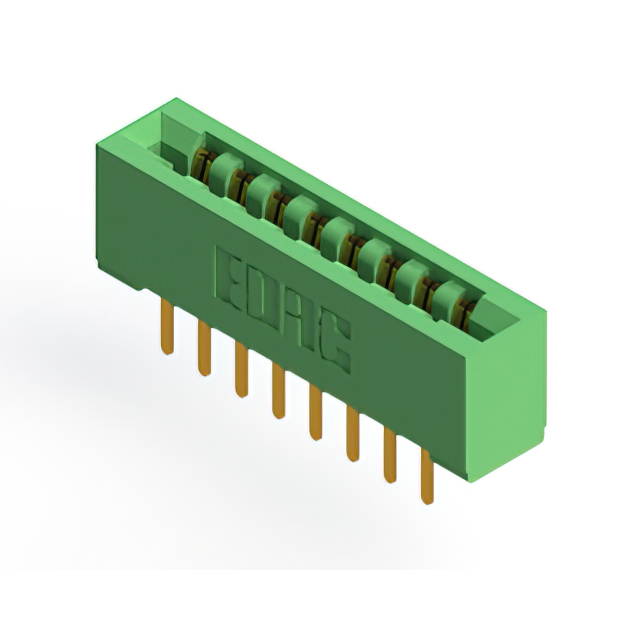

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 16 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsInterconnect Solutions Brochure Card Edge Brochure +2

307-016-520-201

Active

EDAC Inc.

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 16 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Deep-Dive with AI

DocumentsInterconnect Solutions Brochure Card Edge Brochure +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	307-016-520-201

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions	16
Number of Positions/Bay/Row [custom]	8
Number of Positions/Bay/Row [custom]	8
Number of Positions/Bay/Row [custom]	8
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Dual
Termination	Solder
Termination Rows	2

307-016 Series

...

Part	Number of Positions/Bay/Row [custom]	Gender	Pitch [x]	Pitch [x]	Contact Material	Color	Contact Finish	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Material - Insulation	Read Out	Operating Temperature [Min]	Operating Temperature [Max]	Card Type	Termination Rows	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Number of Rows	Termination	Mounting Type	Contact Type	Number of Positions	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]	Features	Contact Finish Thickness	Contact Finish Thickness
EDAC Inc. 307-016-457-103	16	Female	0.156 in	3.96 mm	Copper Alloy	Green	Tin	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	Dual	-40 °C	105 ░C	Non Specified - Dual Edge	1	0.116 in	Floating Bobbin Flush Mount	2.95 mm	2	Solder	Through Hole Right Angle	Semi Bellows
EDAC Inc. 307-016-424-204		Female	0.156 in	3.96 mm	Copper Alloy	Green	Tin	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	Dual	-40 °C	105 ░C	Non Specified - Dual Edge	2	0.156 in	Flush Mount Top Opening Unthreaded	3.96 mm	2	Solder	Through Hole	Semi Bellows	16	8	8	8
EDAC Inc. 307-016-547-178	16	Female	0.156 in	3.96 mm	Copper Alloy	Green	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	Single	-40 °C	105 ░C	Non Specified - Single Edge	1		4-40 Flush Mount Threaded Insert Top Opening		1	Wire Wrap	Through Hole	Semi Bellows	16				Card Guides	10 Áin	0.25 Ám
EDAC Inc. 307-016-425-158	16	Female	0.156 in	3.96 mm	Copper Alloy	Green	Tin	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	Single	-40 °C	105 ░C	Non Specified - Single Edge	1		4-40 Flush Mount Threaded Insert Top Opening		1	Solder	Through Hole	Semi Bellows	16				Card Guides
EDAC Inc. 307-016-458-102	16	Female	0.156 in	3.96 mm	Copper Alloy	Green	Tin	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	Single	-40 °C	105 ░C	Non Specified - Single Edge	1	0.128 "	Flush Mount Top Opening Unthreaded	3.25 mm	1	Solder	Through Hole Right Angle	Semi Bellows	16
EDAC Inc. 307-016-520-201		Female	0.156 in	3.96 mm	Copper Alloy	Green	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	Dual	-40 °C	105 ░C	Non Specified - Dual Edge	2				2	Solder	Through Hole	Semi Bellows	16	8	8	8		10 Áin	0.25 Ám
EDAC Inc. 307-016-545-107	16	Female	0.156 in	3.96 mm	Copper Alloy	Green	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	Single	-40 °C	105 ░C	Non Specified - Single Edge	1		Flush Mount M3 Threaded Insert Top Opening		1	Wire Wrap	Through Hole	Semi Bellows	16					10 Áin	0.25 Ám
EDAC Inc. 307-016-553-103	16	Female	0.156 in	3.96 mm	Copper Alloy	Green	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	Dual	-40 °C	105 ░C	Non Specified - Dual Edge	1	0.116 in	Floating Bobbin Flush Mount	2.95 mm	2	Solder	Through Hole Right Angle	Semi Bellows						10 Áin	0.25 Ám
EDAC Inc. 307-016-501-108	16	Female	0.156 in	3.96 mm	Copper Alloy	Green	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	Dual	-40 °C	105 ░C	Non Specified - Dual Edge	1		4-40 Flush Mount Threaded Insert Top Opening		2	Solder Eyelet(s)	Through Hole	Semi Bellows						10 Áin	0.25 Ám
EDAC Inc. 307-016-401-107	16	Female	0.156 in	3.96 mm	Copper Alloy	Green	Tin	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	Dual	-40 °C	105 ░C	Non Specified - Dual Edge	1		Flush Mount M3 Threaded Insert Top Opening		2	Solder Eyelet(s)	Through Hole	Semi Bellows

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 7.90
Newark	Each	25	$ 8.30
		50	$ 8.11
		100	$ 7.72
		250	$ 7.53
		500	$ 7.26

Description

General part information

307-016 Series

16 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green
