NOJB226M004RWJ

Active

Kyocera AVX

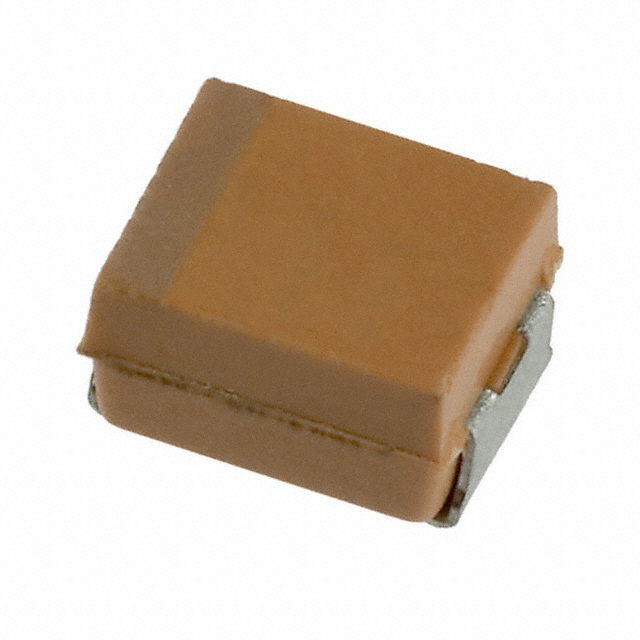

CAP NIOB OXIDE 22UF 20% 4V 1210

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

NOJB226M004RWJ

Active

Kyocera AVX

CAP NIOB OXIDE 22UF 20% 4V 1210

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	NOJB226M004RWJ

Capacitance	22 µF
Current - Leakage	1.8 µA
Dissipation Factor	6 %
ESR (Equivalent Series Resistance)	1.9 Ohms
Height - Seated (Max) [Max] [z]	2.1 mm
Height - Seated (Max) [Max] [z]	0.083 "
Manufacturer Size Code	B
Mounting Type	Surface Mount
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Package / Case	1210, 1411 (3528 Metric)
Size / Dimension [x]	0.138 "
Size / Dimension [x]	3.5 mm
Size / Dimension [y]	0.11 in
Size / Dimension [y]	2.8 mm
Supplier Device Package	3528 Metric
Supplier Device Package	1210
Tolerance	20 %
Voltage - Rated	4 V

NOJB Series

Part	Voltage - Rated	Tolerance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Manufacturer Size Code	Current - Leakage	ESR (Equivalent Series Resistance)	Supplier Device Package	Supplier Device Package	Capacitance	Dissipation Factor
Kyocera AVX NOJB336M006SWJ	6.3 V	20 %	2.1 mm	0.083 "	1210 1411 (3528 Metric)	105 ░C	-55 °C	Surface Mount	0.11 in	2.8 mm	0.138 "	3.5 mm	B	4 µA	1.7 Ohms	3528 Metric	1210	33 ÁF	6 %
Kyocera AVX NOJB476M006RWJV	6.3 V	20 %	2.1 mm	0.083 "	1210 1411 (3528 Metric)	105 ░C	-55 °C	Surface Mount	0.11 in	2.8 mm	0.138 "	3.5 mm	B	5.6 µA	800 mOhm	3528 Metric	1210	47 µF	6 %
Kyocera AVX NOJB156M006SWJ	6.3 V	20 %	2.1 mm	0.083 "	1210 1411 (3528 Metric)	105 ░C	-55 °C	Surface Mount	0.11 in	2.8 mm	0.138 "	3.5 mm	B	1.8 µA	2 Ohms	3528 Metric	1210	15 µF	6 %
Kyocera AVX NOJB106M010SWJ	10 V	20 %	2.1 mm	0.083 "	1210 1411 (3528 Metric)	105 ░C	-55 °C	Surface Mount	0.11 in	2.8 mm	0.138 "	3.5 mm	B	2 µA	1 Ohms	3528 Metric	1210	10 µF	6 %
Kyocera AVX NOJB107M001RWJ	1.8 V	20 %	2.1 mm	0.083 "	1210 1411 (3528 Metric)	105 ░C	-55 °C	Surface Mount	0.11 in	2.8 mm	0.138 "	3.5 mm	B	3.6 µA	1.4 Ohm	3528 Metric	1210	100 µF	6 %
Kyocera AVX NOJB226M010SWJ	10 V	20 %	2.1 mm	0.083 "	1210 1411 (3528 Metric)	105 ░C	-55 °C	Surface Mount	0.11 in	2.8 mm	0.138 "	3.5 mm	B	4.4 µA	700 mOhm	3528 Metric	1210	22 µF	6 %
Kyocera AVX NOJB686M002RWJ	2.5 V	20 %	2.1 mm	0.083 "	1210 1411 (3528 Metric)	105 ░C	-55 °C	Surface Mount	0.11 in	2.8 mm	0.138 "	3.5 mm	B	3.4 µA	1.5 Ohm	3528 Metric	1210	68 µF	6 %
Kyocera AVX NOJB226M006RWJV	6.3 V	20 %	2.1 mm	0.083 "	1210 1411 (3528 Metric)	105 ░C	-55 °C	Surface Mount	0.11 in	2.8 mm	0.138 "	3.5 mm	B	2.6 µA	1.9 Ohms	3528 Metric	1210	22 µF	6 %
Kyocera AVX NOJB226M004RWJ	4 V	20 %	2.1 mm	0.083 "	1210 1411 (3528 Metric)	105 ░C	-55 °C	Surface Mount	0.11 in	2.8 mm	0.138 "	3.5 mm	B	1.8 µA	1.9 Ohms	3528 Metric	1210	22 µF	6 %
Kyocera AVX NOJB476M002RWJ	2.5 V	20 %	2.1 mm	0.083 "	1210 1411 (3528 Metric)	105 ░C	-55 °C	Surface Mount	0.11 in	2.8 mm	0.138 "	3.5 mm	B	2.4 µA	1.6 Ohm	3528 Metric	1210	47 µF	6 %

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	2000	$ 0.16

Description

General part information

NOJB Series

22 µF Niobium Oxide Capacitor 4 V 1411 (3528 Metric), 1210 1.9 Ohms
