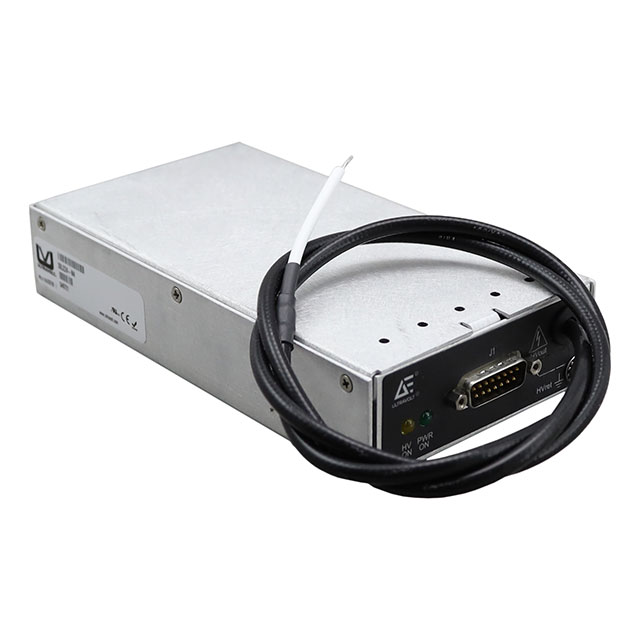

30LE24-N4

Active

ULTRAVOLT / Advanced Energy

DC/DC CONVERTER 30000V 3.9W

Search across all available documentation for this part.

Active

ULTRAVOLT / Advanced Energy

DC/DC CONVERTER 30000V 3.9W

Technical Specifications

Parameters and characteristics for this part

Part	Voltage - Input (Min) [Min]	Approval Agency	Voltage - Output 1	Standard Number	Power (Watts)	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output (Max) [Max]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Number of Outputs	Type	Mounting Type	Voltage - Input (Max) [Max]	Applications
ULTRAVOLT / Advanced Energy 30LE24-P4	23 V	CE cURus	30000 V	62368-1	3.9 W	10 °C	45 °C	130 µA	100 mm	38.1 mm	184.9 mm	3.94 in	7.28 in	1.5 "	1	Enclosed High Voltage	Chassis Mount	30 V	ITE (Commercial)
ULTRAVOLT / Advanced Energy 30LE24-N15	23 V	CE cURus	30000 V	62368-1	15 W	10 °C	45 °C	500 µA	100 mm	38.1 mm	184.9 mm	3.94 in	7.28 in	1.5 "	1	Enclosed High Voltage	Chassis Mount	30 V	ITE (Commercial)
ULTRAVOLT / Advanced Energy 30LE24-N4	23 V	CE cURus	30000 V	62368-1	3.9 W	10 °C	45 °C	130 µA	100 mm	38.1 mm	184.9 mm	3.94 in	7.28 in	1.5 "	1	Enclosed High Voltage	Chassis Mount	30 V	ITE (Commercial)
ULTRAVOLT / Advanced Energy 30LE24-N30	23 V	CE cURus	30000 V	62368-1	30 W	10 °C	45 °C	1 mA	100 mm	38.1 mm	184.9 mm	3.94 in	7.28 in	1.5 "	1	Enclosed High Voltage	Chassis Mount	30 V	ITE (Commercial)
ULTRAVOLT / Advanced Energy 30LE24-P4-AZ	23 V	CE cURus	30000 V	62368-1	3.9 W	10 °C	45 °C	130 µA	100 mm	38.1 mm	184.9 mm	3.94 in	7.28 in	1.5 "	1	Enclosed High Voltage	Chassis Mount	30 V	ITE (Commercial)
ULTRAVOLT / Advanced Energy 30LE24-P15	23 V	CE cURus	30000 V	62368-1	15 W	10 °C	45 °C	500 µA	100 mm	38.1 mm	184.9 mm	3.94 in	7.28 in	1.5 "	1	Enclosed High Voltage	Chassis Mount	30 V	ITE (Commercial)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1316.09

General part information

Enclosed, High Voltage DC DC Converter 1 Output 30000V 130µA 30V Input
