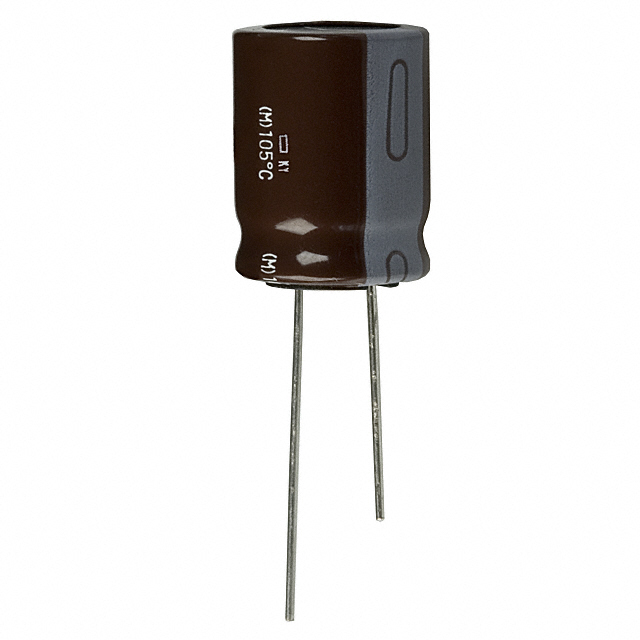

EKY-250ELL182ML20S

Active

Chemi-Con

CAP ALUM 1800UF 20% 25V RADIAL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EKY-250ELL182ML20S

Active

Chemi-Con

CAP ALUM 1800UF 20% 25V RADIAL

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EKY-250ELL182ML20S

Applications	General Purpose
Capacitance	1800 µF
Height - Seated (Max) [Max]	21.5 mm
Height - Seated (Max) [Max]	0.846 in
Impedance	27 mOhms
Lead Spacing	7.5 mm
Lead Spacing	0.295 in
Lifetime @ Temp.	10000 Hrs
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Package / Case	Radial, Can
Polarization	Polar
Ripple Current @ High Frequency	2.53 A
Ripple Current @ Low Frequency	1.518 A
Size / Dimension [diameter]	0.63 in
Size / Dimension [diameter]	16 mm
Tolerance	20 %
Voltage - Rated	25 VDC

EKY-250E Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Capacitance	Polarization	Impedance	Voltage - Rated	Ripple Current @ High Frequency	Tolerance	Size / Dimension [diameter]	Size / Dimension [diameter]	Mounting Type	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Lifetime @ Temp.	Lead Spacing	Lead Spacing	Package / Case	Applications	Ripple Current @ Low Frequency	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
Chemi-Con EKY-250ETD681MJ20S	-40 °C	105 ░C	680 µF	Polar	46 mOhms	25 VDC	1.4 A	20 %	10 mm	0.394 in	Through Hole	21.5 mm	0.846 in	7000 Hrs	5 mm	0.197 in	Radial Can	General Purpose	840 mA
Chemi-Con EKY-250ELL221MHB5D	-40 °C	105 ░C	220 µF	Polar	130 mOhms	25 VDC	640 mA	20 %	8 mm	0.315 "	Through Hole			7000 Hrs	3.5 mm	0.138 in	Radial Can	General Purpose	320 mA	13 mm	0.512 "
Chemi-Con EKY-250ELL122MM15S	-40 °C	105 ░C	1.2 mF	Polar	43 mOhms	25 VDC	2.21 A	20 %	18 mm	0.709 "	Through Hole			10000 Hrs	7.5 mm	0.295 in	Radial Can	General Purpose	1.326 A	16.5 mm	16.51 mm
Chemi-Con EKY-250ELL332MLN3S	-40 °C	105 ░C	3.3 mF	Polar	17 mOhms	25 VDC	3.45 A	20 %	16 mm	0.63 in	Through Hole			10000 Hrs	7.5 mm	0.295 in	Radial Can	General Purpose	2.5875 A	33 mm	1.299 in
Chemi-Con EKY-250ELL102ML15S	-40 °C	105 ░C	1000 µF	Polar		25 VDC	1.94 A	20 %	16 mm	0.63 in	Through Hole			10000 Hrs	7.5 mm	0.295 in	Radial Can	General Purpose	1.164 A	16.5 mm	16.51 mm
Chemi-Con EKY-250ELL101MF11D	-40 °C	105 ░C	100 µF	Polar	220 mOhms	25 VDC	340 mA	20 %	6.3 mm	0.248 in	Through Hole	12.5 mm	0.492 in	5000 Hrs	2.5 mm	0.098 in	Radial Can	General Purpose	136 mA
Chemi-Con EKY-250ETD221MHB5D	-40 °C	105 ░C	220 µF	Polar		25 VDC	640 mA	20 %	8 mm	0.315 "	Through Hole			7000 Hrs	3.5 mm	0.138 in	Radial Can	General Purpose	320 mA	13 mm	0.512 "
Chemi-Con EKY-250ELL182ML20S	-40 °C	105 ░C	1800 µF	Polar	27 mOhms	25 VDC	2.53 A	20 %	16 mm	0.63 in	Through Hole	21.5 mm	0.846 in	10000 Hrs	7.5 mm	0.295 in	Radial Can	General Purpose	1.518 A
Chemi-Con EKY-250ETD471MJ16S	-40 °C	105 ░C	470 µF	Polar	60 mOhms	25 VDC	1.21 A	20 %	10 mm	0.394 in	Through Hole	17.5 mm	0.689 in	7000 Hrs	5 mm	0.197 in	Radial Can	General Purpose	605 mA
Chemi-Con EKY-250ELL152MK25S	-40 °C	105 ░C	1.5 mF	Polar	27 mOhms	25 VDC	2.23 A	20 %	12.5 mm	0.492 in	Through Hole			10000 Hrs	5 mm	0.197 in	Radial Can	General Purpose	1.338 A	26.5 mm	1.043 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.01
		10	$ 0.76
		50	$ 0.69
		100	$ 0.57
		500	$ 0.45
		1000	$ 0.40
		2500	$ 0.37
		5000	$ 0.36

Description

General part information

EKY-250E Series

1800 µF 25 V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C
