0039000040-03-B2

Active

Molex

3" PRE-CRIMP A2016 BLACK

Search across all available documentation for this part.

Active

Molex

3" PRE-CRIMP A2016 BLACK

Technical Specifications

Parameters and characteristics for this part

...

Part	Number of Rows	Contact Finish	Color	Wire Gauge	Number of Conductors	Length [x]	Length [x]	Contact End	Length	Length
Molex 0039000040-11-N2-D	1	Tin	Brown	22 AWG	1	279.4 mm	11 in
Molex 0039000040-04-Y0	1	Tin	Yellow	20 AWG	1	101.6 mm	4 "	Pin to Cable (Round)
Molex 0039000040-03-G0	1	Tin	Green	20 AWG	1		3 in	Pin to Cable (Round)	76.2 mm
Molex 0039000040-08-R0	1	Tin	Red	20 AWG	1			Pin to Cable (Round)	203.2 mm	8 in
Molex 0039000040-03-L9-D	1	Tin	Blue	18 AWG	1		3 in		76.2 mm
Molex 0039000040-11-B2	1	Tin	Black	22 AWG	1	279.4 mm	11 in	Pin to Cable (Round)
Molex 0039000040-02-S0-D	1	Tin	Slate	20 AWG	1
Molex 0039000040-03-B2	1	Tin	Black	22 AWG	1		3 in	Pin to Cable (Round)	76.2 mm
Molex 0039000040-11-R2-D	1	Tin	Red	22 AWG	1	279.4 mm	11 in
Molex 0039000040-06-L0	1	Tin	Blue	20 AWG	1			Pin to Cable (Round)	152.4 mm	6 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

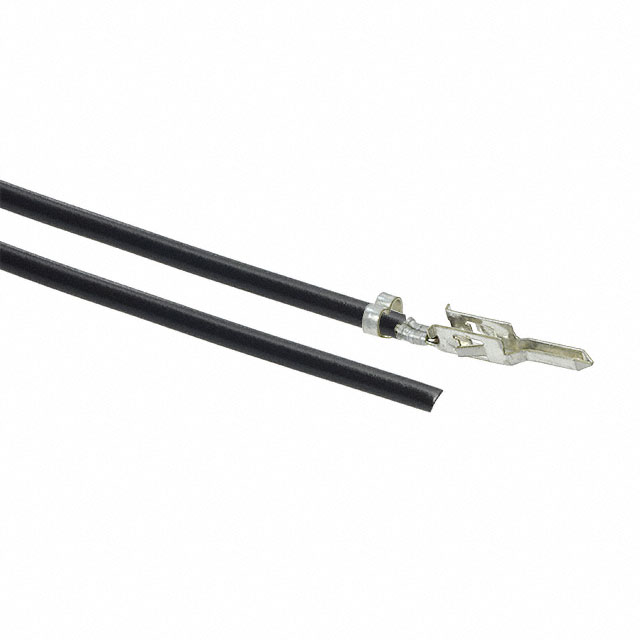

Black 22 AWG Jumper Lead Pin to Cable (Round) Tin 3.00" (76.20mm)

Technical documentation and resources

No documents available
