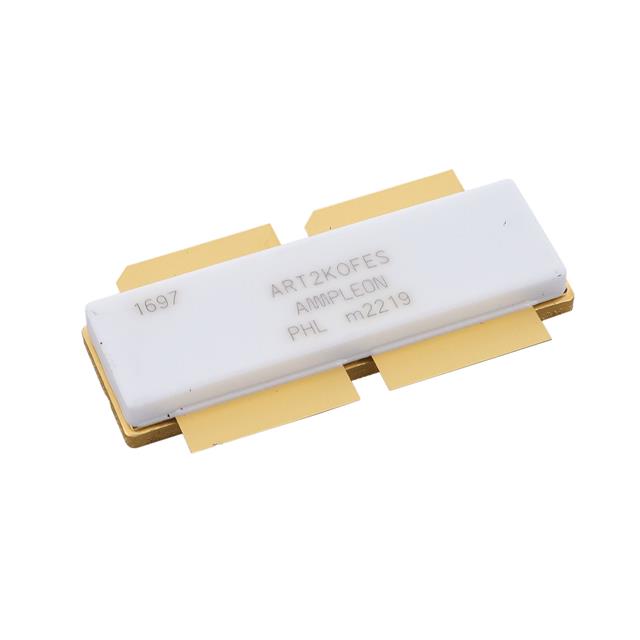

ART2K0FESU
ActiveAmpleon USA Inc.
RF MOSFET LDMOS 65V SOT539AN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ART2K0FESU
ActiveAmpleon USA Inc.
RF MOSFET LDMOS 65V SOT539AN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ART2K0FESU |
|---|---|
| Configuration | Common Source, Dual |
| Current - Test | 600 mA |
| Current Rating (Amps) | 1.4 µA |
| Frequency [Max] | 400 MHz |
| Frequency [Min] | 1 MHz |
| Gain | 28.9 dBi |
| Mounting Type | Chassis Mount |
| Package / Case | SOT-539AN |
| Power - Output | 2 kW |
| Supplier Device Package | SOT539AN |
| Voltage - Rated | 200 V |
| Voltage - Test | 65 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 225.83 | |
| 20 | $ 216.29 | |||
| 40 | $ 211.52 | |||
Description
General part information
ART2K0 Series
RF Mosfet 65 V 600 mA 1MHz ~ 400MHz 28.9dB 2000W SOT539AN
