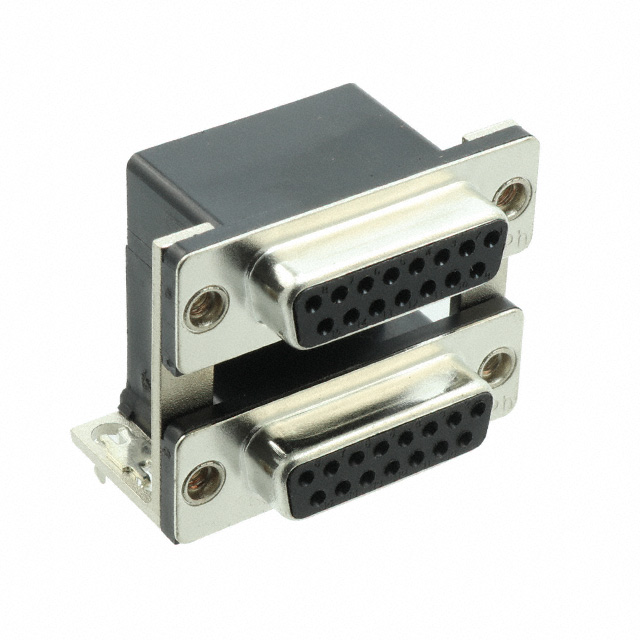

L17H2442120

Active

Amphenol ICC (Commercial Products)

CONN D-SUB RCPT 15POS R/A SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

L17H2442120

Active

Amphenol ICC (Commercial Products)

CONN D-SUB RCPT 15POS R/A SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	L17H2442120

Backset Spacing	8.08 mm
Backset Spacing	0.318 "
Color	Black
Connector Style	D-Sub - Stacked
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Form	Stamped
Contact Material	Brass
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Thermoplastic, Glass Filled
Features	Shielded, Board Lock
Flange Feature	Housing/Shell (4-40)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	15
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout [custom]	2
Shell Size, Connector Layout [custom]	2
Termination	Solder
Voltage Rating	250 VDC

L17H24 Series

Part	Flange Feature	Contact Type	Contact Finish	Current Rating (Amps)	Number of Positions	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Mounting Type	Contact Material	Features	Voltage Rating	Contact Finish Thickness	Termination	Backset Spacing	Backset Spacing	Number of Rows	Material Flammability Rating	Contact Form	Color	Connector Type	Dielectric Material	Connector Style	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish Thickness	Contact Finish Thickness
Amphenol ICC (Commercial Products) L17H2430110	Housing/Shell (4-40)	Signal	Gold	3 A	15	2	2	Through Hole Right Angle	Brass	Shielded	250 VDC	Flash	Solder	8.08 mm	0.318 "	2	UL94 V-0	Stamped	Black	Plug Male Pins Receptacle Female Sockets	Thermoplastic Glass Filled	D-Sub - Stacked	105 ░C	-55 °C
Amphenol ICC (Commercial Products) L17H2440127	Female Screwlock (4-40) Mating Side	Signal	Gold	3 A	15	2	2	Through Hole Right Angle	Brass	Board Lock Shielded	250 VDC	Flash	Solder	8.08 mm	0.318 "	2	UL94 V-0	Stamped	Black	Receptacle Female Sockets	Thermoplastic Glass Filled	D-Sub - Stacked	105 ░C	-55 °C
Amphenol ICC (Commercial Products) L17H2441130	Housing/Shell (4-40)	Signal	Gold	3 A	15	2	2	Through Hole Right Angle	Brass	Board Lock Shielded	250 VDC		Solder	8.08 mm	0.318 "	2	UL94 V-0	Stamped	Black	Receptacle Female Sockets	Thermoplastic Glass Filled	D-Sub - Stacked	105 ░C	-55 °C	15 µin	0.38 µm
Amphenol ICC (Commercial Products) L17H2440137	Female Screwlock (4-40) Mating Side	Signal	Gold	3 A	15	2	2	Through Hole Right Angle	Phosphor Bronze	Board Lock Shielded	250 VDC	Flash	Solder	8.08 mm	0.318 "	2	UL94 V-0	Stamped		Receptacle Female Sockets	Thermoplastic Glass Filled	D-Sub - Stacked	125 °C	-55 °C
Amphenol ICC (Commercial Products) L17H2442120	Housing/Shell (4-40)	Signal	Gold	3 A	15	2	2	Through Hole Right Angle	Brass	Board Lock Shielded	250 VDC		Solder	8.08 mm	0.318 "	2	UL94 V-0	Stamped	Black	Receptacle Female Sockets	Thermoplastic Glass Filled	D-Sub - Stacked	105 ░C	-55 °C	30 Áin	0.76 Ám
Amphenol ICC (Commercial Products) L17H2430130	4-40 Board Side	Signal	Gold	3 A	15	2	2	Through Hole Right Angle	Brass Phosphor Bronze	Board Lock Shielded	250 VDC	Flash	Solder	8.08 mm	0.318 "	2	UL94 V-0	Stamped		Plug Male Pins Receptacle Female Sockets	Thermoplastic Glass Filled	D-Sub - Stacked	125 °C	-55 °C
Amphenol ICC (Commercial Products) L17H2440120	4-40 Board Side	Signal	Gold	3 A	15	2	2	Through Hole Right Angle	Phosphor Bronze	Board Lock Shielded	250 VDC	Flash	Solder	8.08 mm	0.318 "	2	UL94 V-0	Stamped		Receptacle Female Sockets	Thermoplastic Glass Filled	D-Sub - Stacked	125 °C	-55 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 10.07
		10	$ 7.73
		25	$ 6.98
		40	$ 6.63
		80	$ 6.15
		230	$ 5.52
		440	$ 5.17
		945	$ 4.80

Description

General part information

L17H24 Series

15, 15 Position D-Sub - Stacked Receptacle, Female Sockets Connector
